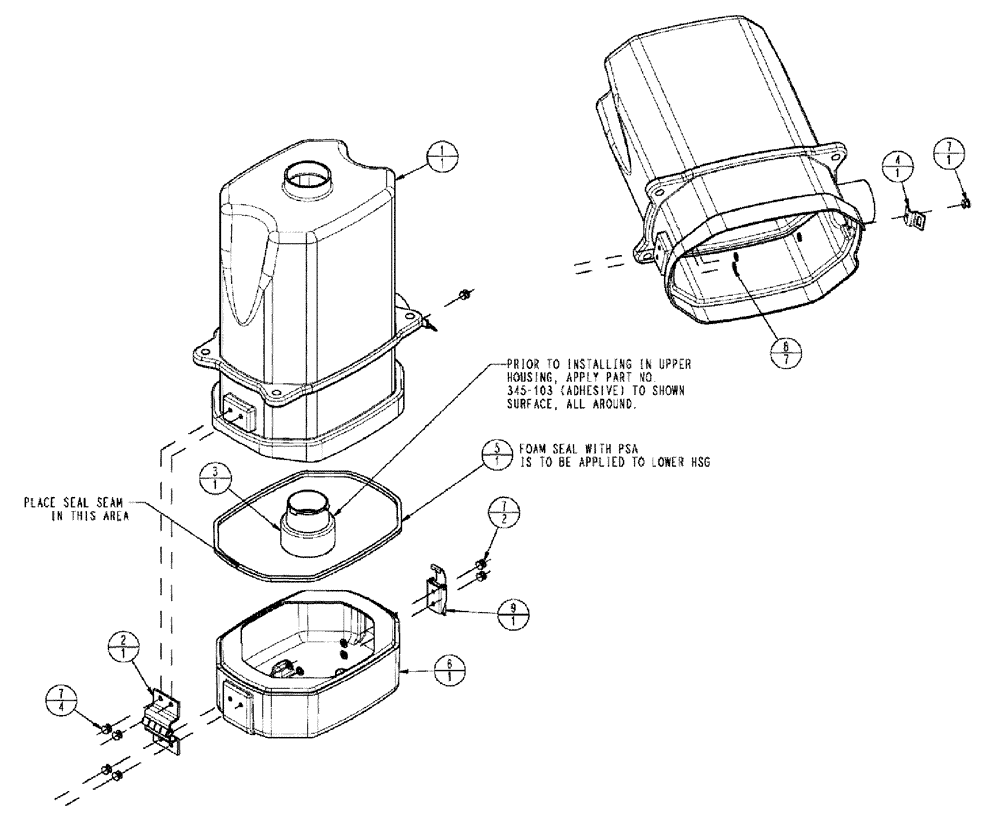

Запчасти Case IH TITAN 4520 (01-019) - HOUSING, AIR CLEANER ASSEMBLY (10) - CAB

1

87596192

HOUSING

UPPER FILTER

1шт.

2

319969A1

HINGE

air filter housing

1шт.

3

307016A1

COUPLING

FILTER, ADAPTER

1шт.

4

307021A2

CLIP

KEEPER

1шт.

5

87598827

RUBBER SEAL,5.08mm W x 680mm L x 4.76mm Thk

1шт.

6

87596190

HOUSING

Filter, Lower

1шт.

7

86637655

RIVET,Pop, 3/16" x .450"

7шт.

8

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

7шт.

9

87596198

LATCH

Air Filter Housing

1шт.
