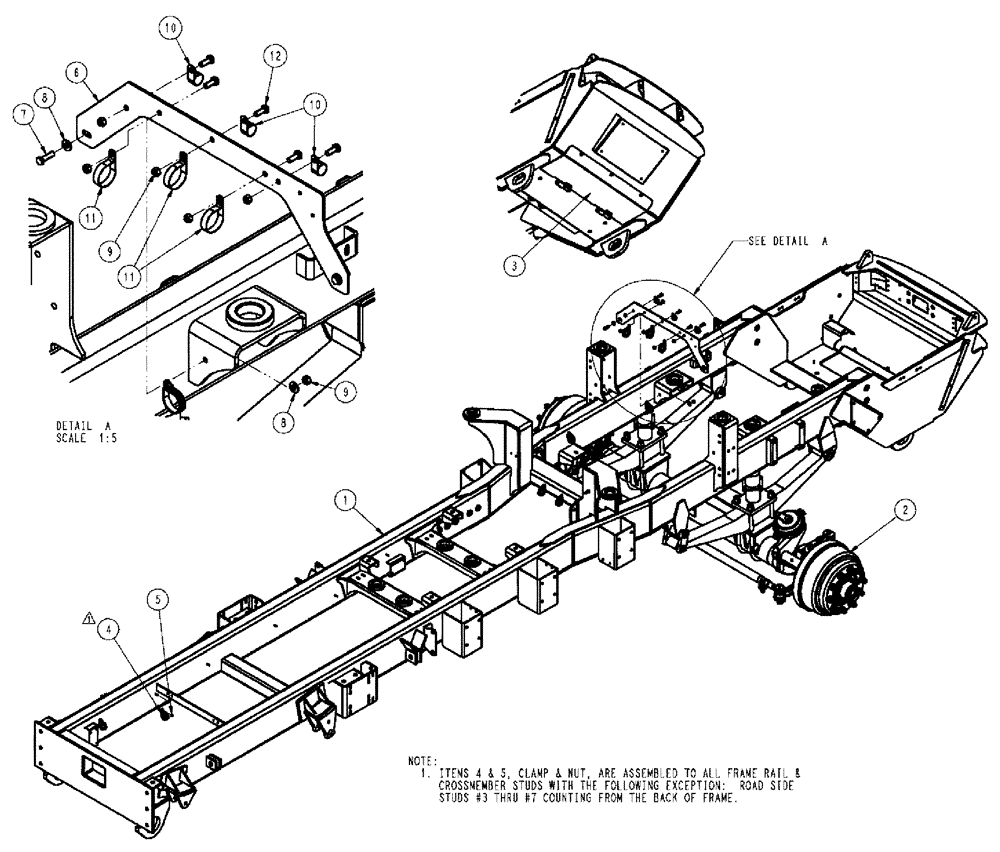

Запчасти Case IH TITAN 4520 (04-014) - FRAME GROUP Frame & Suspension

1

342556A1

FRAME

complete

1шт.

2

NS

NOT SERVICED

AXLE GRP, FRONT, COMPLETE

1шт.

2a

NS

NOT SERVICED

AXLE SPRING GROUP, FRONT

1шт.

Parts of Axle Grp, Front, Complete, P/N 87267220

1шт.

2b

NS

NOT SERVICED

FRONT AXLE INSTALL

1шт.

Parts of Axle Grp, Front, Complete, P/N 87267220

1шт.

3

NS

NOT SERVICED

ACESS GROUP, LOWER RAD

1шт.

4

BN2399320

CLAMP

Loom, Del City #2032

15шт.

5

353308

NUT,M6 x 1.0, Cl 8

15шт.

6

87268764

PLATE

HARNESS/SOL, MOUNT

1шт.

7

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

8

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

9

100037

LOCK NUT,M10 x 1.5, Cl 8

7шт.

10

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

11

515-23508

CLAMP,2", Insul, 3/8" Bolt

3шт.

12

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

5шт.
