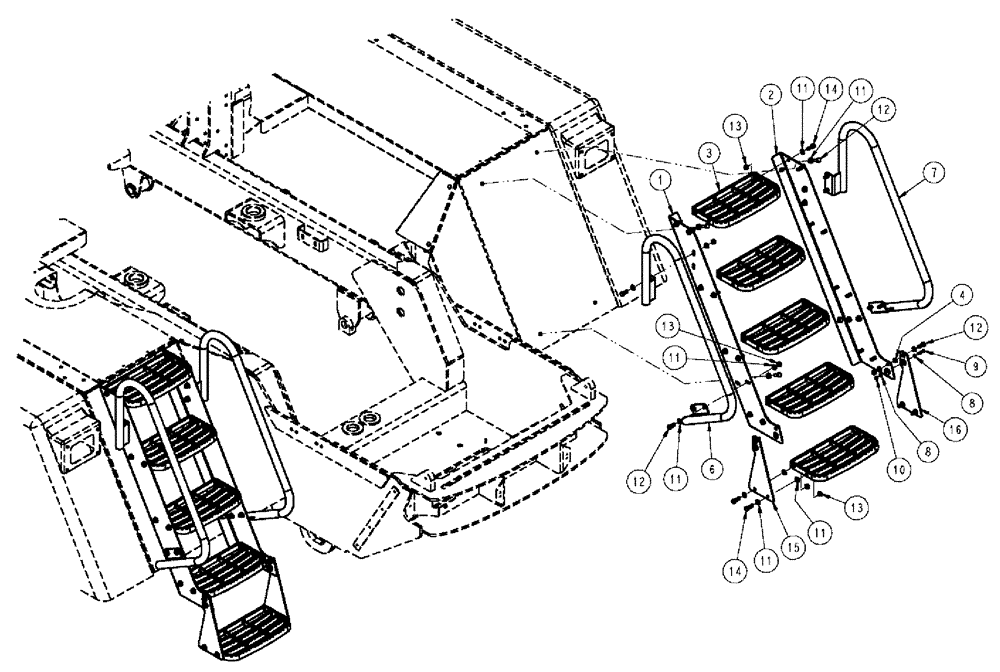

Запчасти Case IH TITAN 4520 (04-013) - LADDER GROUP, FRONT Frame & Suspension

1

87267055

RAIL ASSY.

RH

2шт.

2

87267056

RAIL ASSY.

LH

2шт.

3

87270245

STEP

BLACK ALUMINUM

10шт.

4

343810A1

SPACER

step extension hinge

4шт.

6

344137A1

HANDRAIL

ladder

2шт.

7

344138A1

HANDRAIL

LADDER

2шт.

9

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

4шт.

10

353308

NUT,M6 x 1.0, Cl 8

4шт.

11

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

120шт.

12

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

20шт.

13

100037

LOCK NUT,M10 x 1.5, Cl 8

60шт.

14

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

40шт.

15

87268760

SIDE RAIL

Step Extension, RH

2шт.

16

87268761

SIDE RAIL

Step Extension, LH

2шт.
