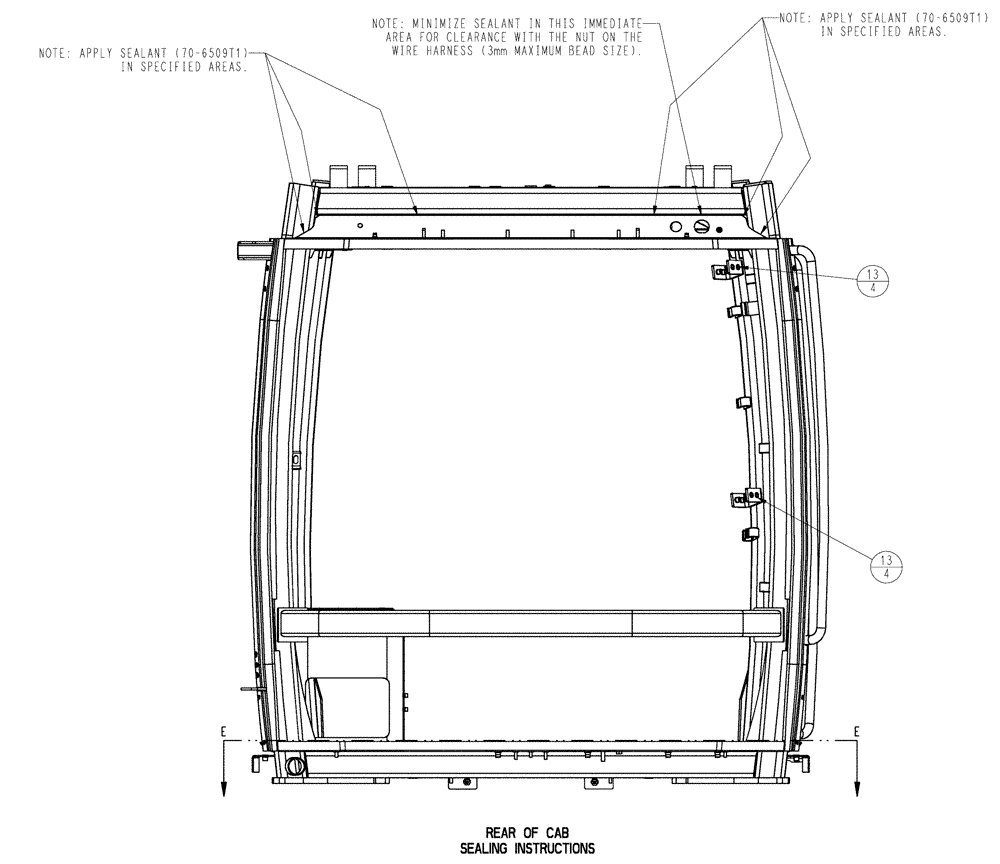

Запчасти Case IH TITAN 4520 (01-002[03]) - CAB EXTERIOR GROUP (10) - CAB

1

87674720

W/STRUCTURE, NSS, Order 87755440

1шт.

2

390360A1

SEAL

DOOR

2шт.

3

86637800

PLUG

button recessed nom 2.500 black

2шт.

4

442085A1

MOUNTING PARTS

BALL STUD

2шт.

5

3234063R1

BALL STUD,M10 x 1.5

stud

2шт.

6

86639049

PLUG

Cap 1/2" Hole, Black Poly

11шт.

7

353-407

PLUG,Dome, .687" hole, Nylon

1шт.

8

86625127

PLUG,Dome, .375" hole, Nylon

3шт.

9

408567A1

STUD

THREADED CAPTIVE

35шт.

10

449068A1

STUD

THREADED CAPTIVE

3шт.

11

408568A1

STUD

THREADED CAPTIVE

4шт.

12

440570A1

STUD

THREADED CAPTIVE

18шт.

13

379540A1

INSERT,M8

THREADED KNURLED OPEN

8шт.

14

408566A1

INSERT,M8

Threaded Knurled Open

17шт.

15

404287A1

INSERT,M6

threaded knurled open

14шт.

16

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

17

353-403

PLUG,Dome, .437" hole, Nylon

3шт.
