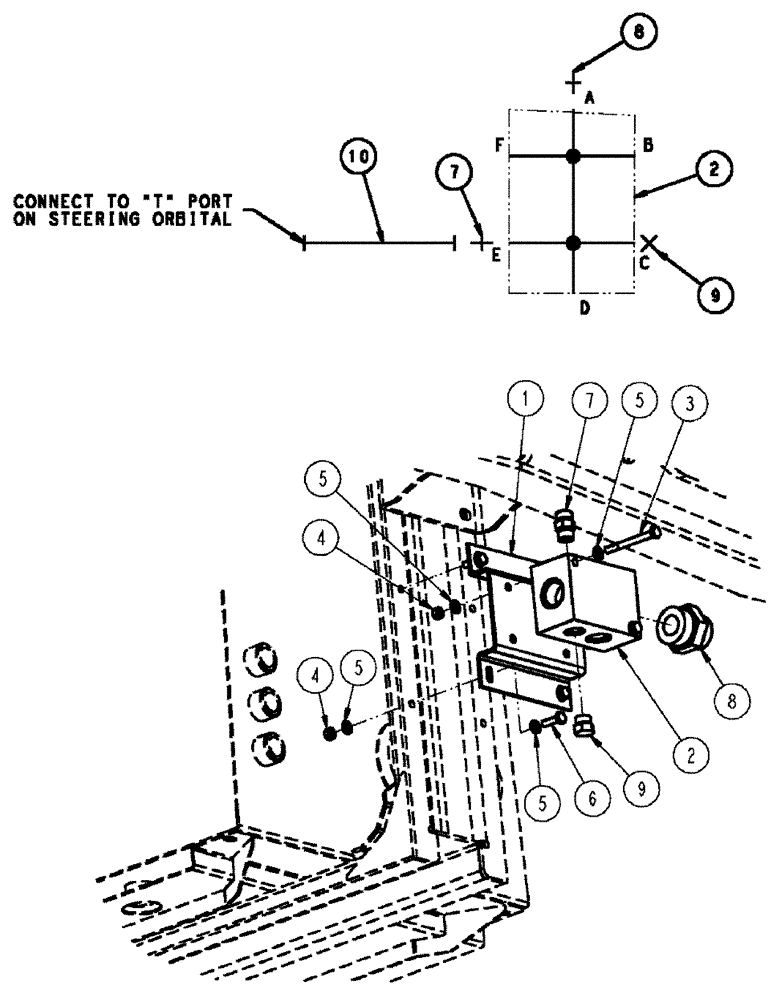

Запчасти Case IH TITAN 4520 (06-003) - MANIFOLD GROUP, HYDRAULIC (07) - HYDRAULICS

1

BN324125

BRACKET, SUPPORTING

OIL, MANIFOLD

1шт.

2

BN302877

MANIFOLD

OIL, RETURN

1шт.

3

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

4

86528579

NUT,M8 x 1.25

6шт.

5

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

6

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

7

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

1шт.

8

BN305058

FITTING

20MOR-24MB

1шт.

9

BN446025

PLUG

HEX O-RING, 3/4-16

1шт.

10

BN309737

HOSE

1шт.
