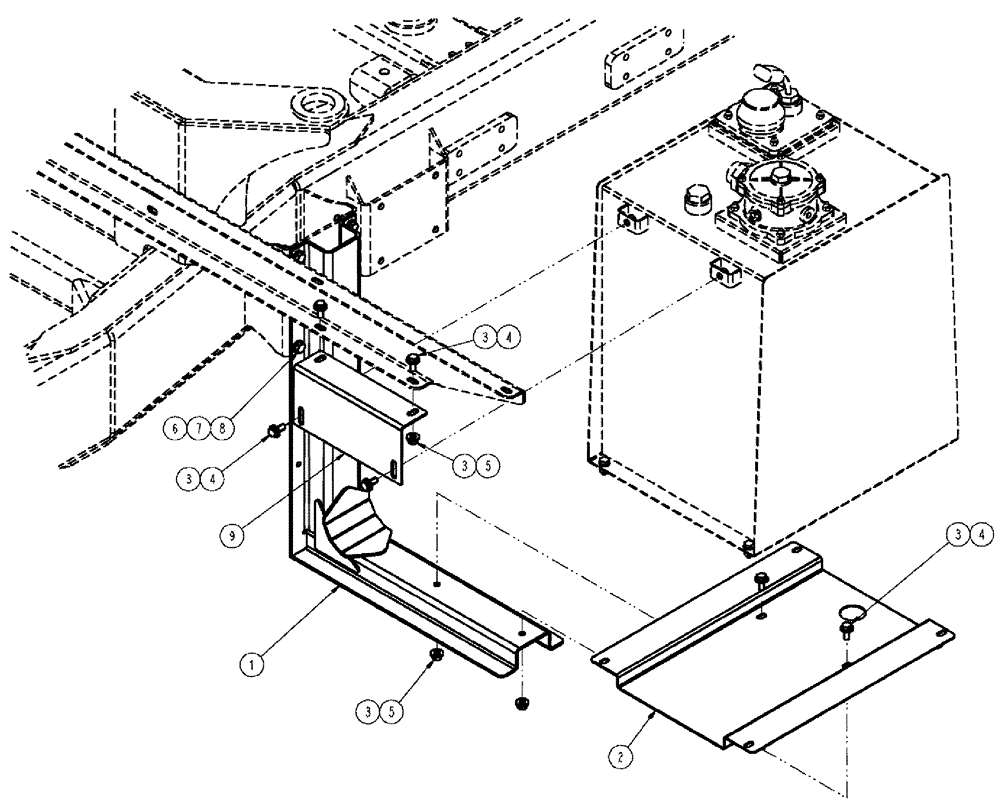

Запчасти Case IH TITAN 4520 (06-002) - MOUNT GROUP, HYDRAULIC OIL TANK (07) - HYDRAULICS

1

344099A1

BRACKET

hydraulic tank

1шт.

2

87265292

MOUNT

Hydraulic Tank

1шт.

3

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

10шт.

4

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

6шт.

5

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

6

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

7

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

4шт.

8

100038

NUT,M12 x 1.75, Cl 8

4шт.

9

87267218

BRACKET

Hydraulic Oil Tank

1шт.
