Запчасти Case IH TITAN 4520 (08-003) - ELECTRICAL GROUP, CABLE (06) - ELECTRICAL

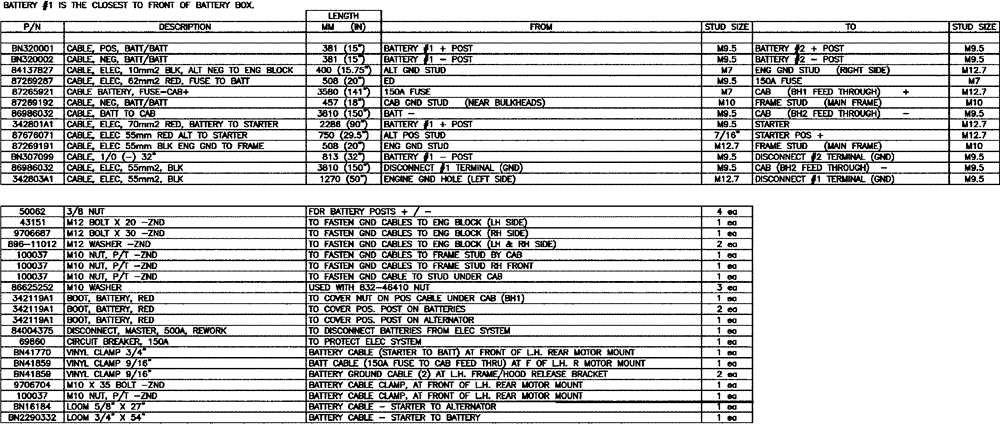

Схема запчастей Case IH TITAN 4520 - (08-003) - ELECTRICAL GROUP, CABLE (06) - ELECTRICAL
21

Артикул

Название

Примечание

Количество

1

342119A1

BOOT

BATTERY, RED

4шт.

2

87269287

CABLE

Battery To Fuse

1шт.

3

342801A1

CABLE

electrical, 70mm2 red

1шт.

4

342803A1

ELECTRIC CABLE

55mm2 black

1шт.

5

84137827

ELECTRIC CABLE

10MM2 BLK, Start Year: 01-AUG-09

1шт.

6

342813A1

CABLE

electrical, 10mm2 black, Years: -01-AUG-09

1шт.

7

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

8

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

9

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

10

86986032

CABLE

Electrical, 55mm2, Black

1шт.

11

84004375

BATTERY CUT-OUT

DISCONNECT, BATTERY

1шт.

12

87265921

CABLE

BATTERY, FUSE - CAB +

1шт.

13

87269191

CABLE

Electrical, 55mm2 Black

1шт.

14

87269192

CABLE

Electrical, 70mm2, Black

1шт.

15

87676071

CABLE

1/0 Red, Alternator To Starter, Start Year: 01-AUG-09

1шт.

16

87269193

CABLE

Electrical, 55mm2 Red, Years: -01-AUG-09

1шт.

17

87269287

CABLE

Battery To Fuse

1шт.

18

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

3шт.

19

BN16184

.625 ID CONVOLUTED

1шт.

20

BN2290332

LOOM

Split 3/4" id #1789

1шт.

21

BN320001

CABLE

POS, BATT/BATT

1шт.

22

BN320002

NEG BATTERY CABLE

/Battery

1шт.

23

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

24

257492

CLAMP,14.3mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

25

BN50062

LOCK NUT,3/8"-16, Stainless Steel

4шт.

26

BN69860

CIRCUIT BREAKER

150A

1шт.

27

BN307099

CABLE

NEG, BATT/DISCONNECT

1шт.

28

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

29

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

30

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

Выбрано товаров: 30
