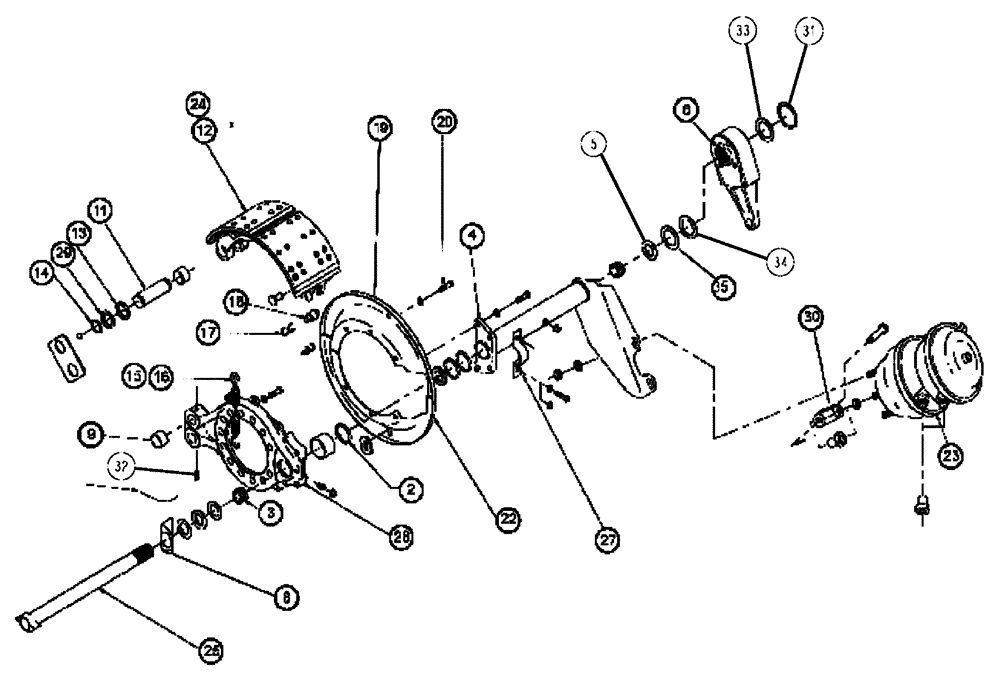

Запчасти Case IH TITAN 4520 (04-008[01]) - REAR AXLE BRAKE, AFTER 08/2008 Frame & Suspension

2

84175120

SEAL

Camshaft

45шт.

3

84175112

BUSHING

Camshaft

4шт.

4

84175130

BRACKET, SUPPORTING

Chamber, LH

1шт.

4

84175132

BRACKET, SUPPORTING

Chamber, RH

1шт.

Not Shown

1шт.

5

84175121

O-RING

Camshaft

2шт.

6

84175341

BRAKE ADJUSTER

SLACK ADJUSTER, AUTO

2шт.

8

84175272

WASHER

Camhead Brake

2шт.

9

84175114

BUSHING

Anchor Pin

4шт.

11

84175277

PIN

shoe anchor

4шт.

12

84175754

BRAKE SHOE

with hardware

2шт.

13

BN2451943

SEAL

Felt Pin, Brake Shoe

8шт.

14

87271287

SNAP RING

Brake Pin

8шт.

16

BN2451945

SPRING

Return, Brake Shoe

2шт.

17

NSS

NOT SOLD SEPARAT

RETAINER

2шт.

18

NSS

NOT SOLD SEPARAT

ROLLER

2шт.

19

84175361

PROTECTION PLATE

Dust Shield, LH Upper And RH Lower

2шт.

20

BN2450237

BOLT

Dust Shield S-264-1

12шт.

22

84175362

PROTECTION PLATE

Dust Shield, RH Upper And LH Lower

2шт.

23

NSS

NOT SOLD SEPARAT

BRAKE CHAMBER ASSY

1шт.

See 343361A1 in Axle Group

1шт.

24

84175322

BRAKE SHOE

With Lining, Roller

4шт.

25

84175133

CAMSHAFT

BRAKE, L.H.

1шт.

25

84175134

CAMSHAFT

BRAKE, R.H.

1шт.

27

84169494

CLAMP

Brake Chamber

2шт.

28

87392254

SPIDER

ASSY, BRAKE

2шт.

28a

84175112

BUSHING

Camshaft

1шт.

Service Parts For Ref. 28

1шт.

28b

84175120

SEAL

Camshaft

1шт.

Service Parts For Ref. 28

1шт.

28c

84175114

BUSHING

Anchor Pin

2шт.

Service Parts For Ref. 28

1шт.

29

BN2451806

RETAINER

Pin, Brake Shoe Anchor

8шт.

30

84175896

ADJUSTABLE CLEVIS

CHAMBER AXLE (ADJ. SLACKER)

2шт.

31

87267993

RING

Snap, Camshaft

2шт.

32

84175929

SET SCREW

HH

2шт.

33

84181338

WASHER

Shim

2шт.

34

84181334

WASHER

Inner Slack Adjustment

2шт.

35

84190221

WASHER

6шт.
