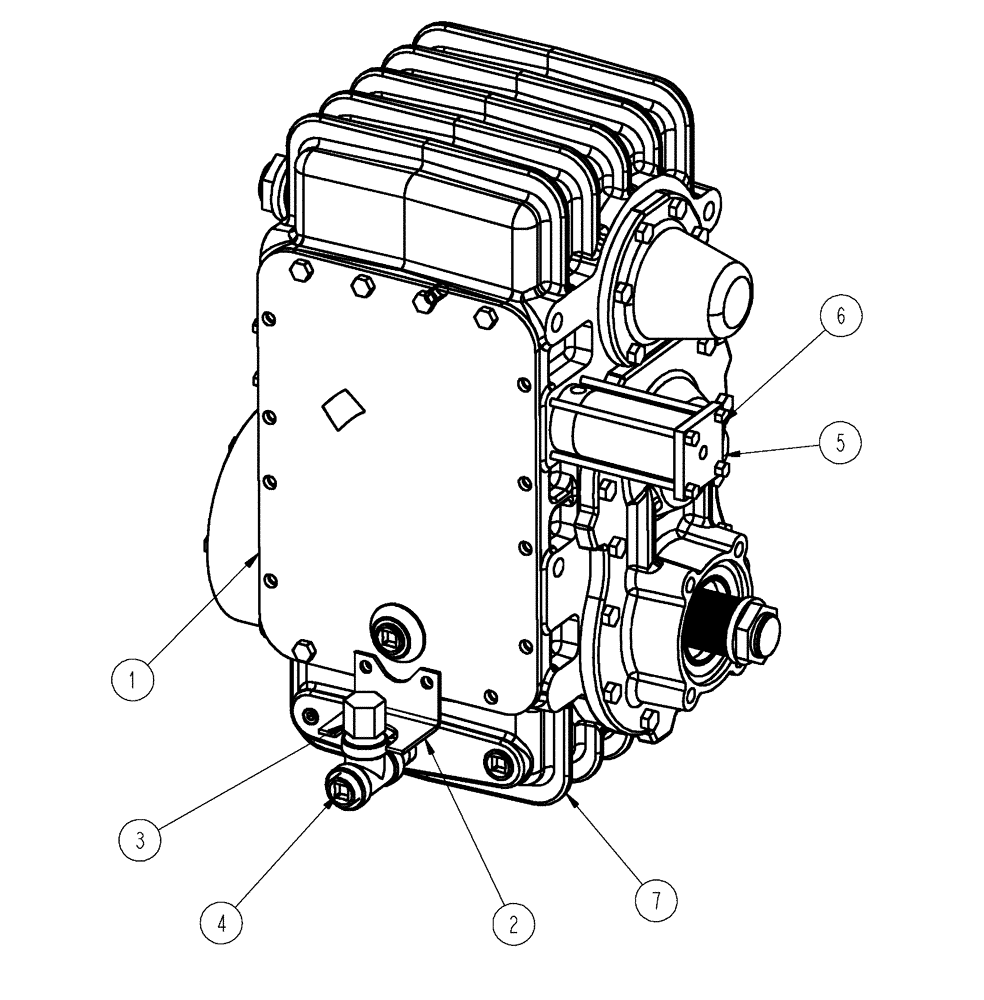

Запчасти Case IH TITAN 4520 (03-009) - TRANSFER CASE, FABCO 2 WHEEL (03) - TRANSMISSION

1

87577334

GASKET

gasket, side cover

1шт.

2

87482375

BRACKET

FIX, DRAIN

1шт.

3

87269206

CAP

3/4" NPT HEX, REWORK

1шт.

4

BN2390129-035

PLUG

Magnetic, 3/4" NPT

1шт.

5

87271269

SEAL KIT

AIR SHIFT CYL

1шт.

See Fig. 03-011

1шт.

6

87577056

SERVICE PARTS

1шт.

See Fig. 03-010

1шт.

7

84178281

SERVICE KIT

Shift Cylinder Transfer Case

1шт.

See Fig. 03-012

1шт.
