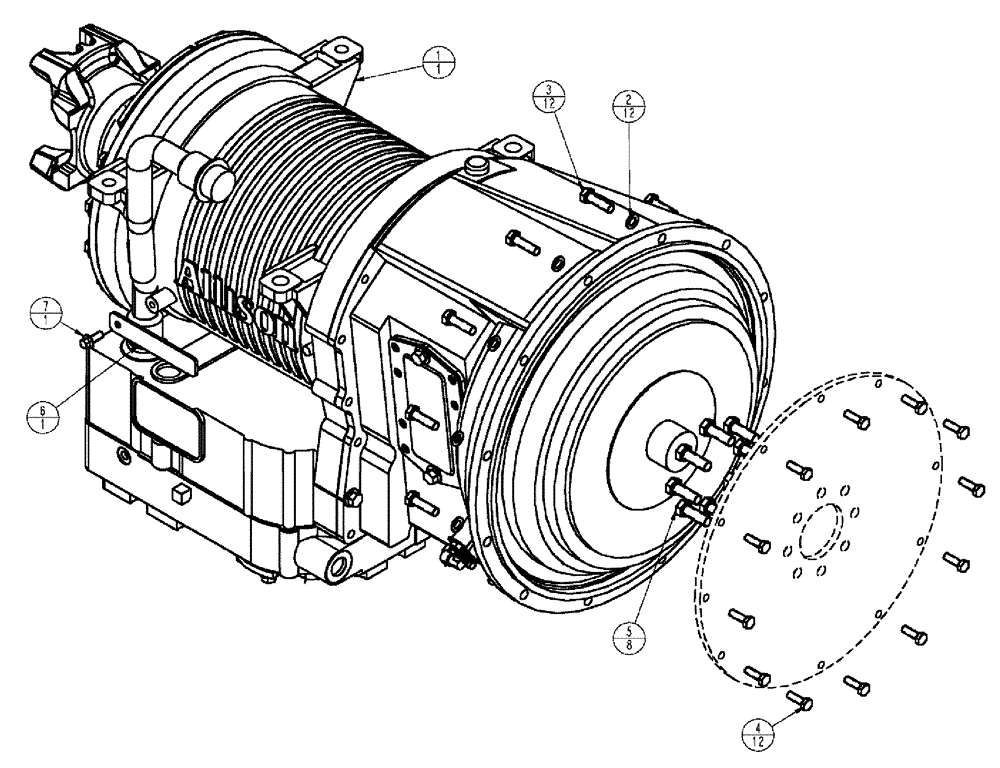

Запчасти Case IH TITAN 4520 (03-003) - TRANSMISSION GROUP, TITAN 4520 (03) - TRANSMISSION

1

84139501

TRANSMISSION

GEN 4, 9L CDC, Start Serial: Y8T024140

1шт.

See Fig. 03-004

1шт.

1

87271286

TRANSMISSION

GEN 4, 9L CDC, Serial Range: -Y8T024139

1шт.

See Fig. 03-004

1шт.

2

86981495

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

10.5 X 18 X 1.6 MM CST DOR

12шт.

3

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

12шт.

4

87342022

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

12шт.

5

86642438

BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9, Full Thd

8шт.

6

BN315282

PLATE

TRANSMISSION HARNESS

1шт.

7

86625200

SELF-TAP SCREW,Hex Flng, M8 x 1.25 x 20mm

1шт.
