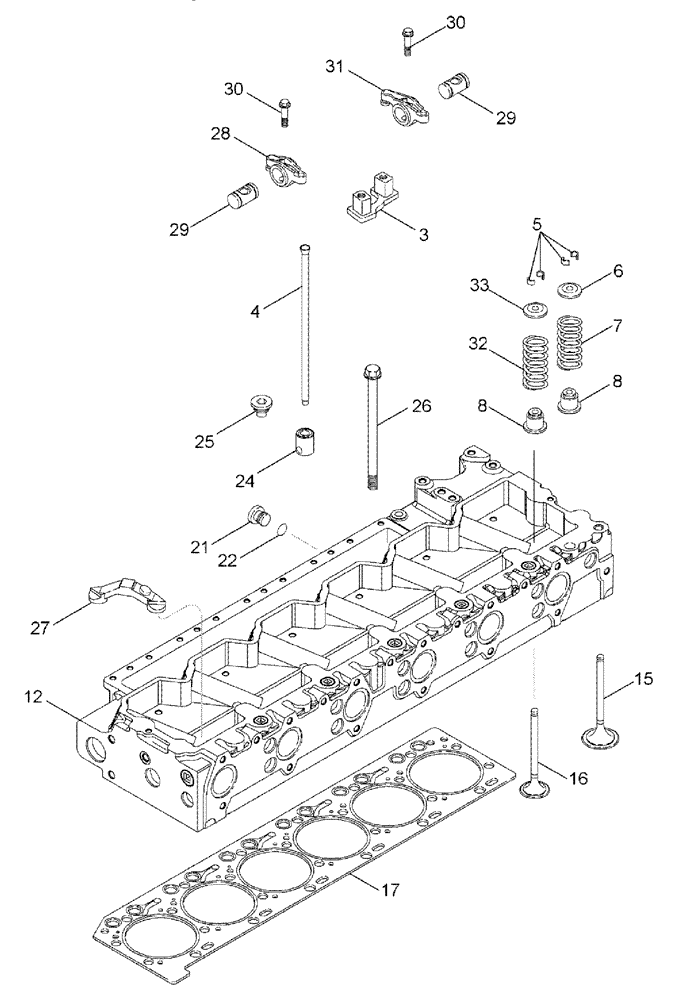

Запчасти Case IH TITAN 4520 (02-041) - CYLINDER HEAD AND VALVE MECHANISM (01) - ENGINE

1

87653057

HEAD ASSY.

With Valves

1шт.

Includes Refs. 5 - 8, 12, 15, 16, 32 & 33

1шт.

1

84283167R

REMAN-CYLINDER HEAD

Titan 4020, Titan 4520, Reman For New P/N 87653057

1шт.

1

84283167C

CORE-CYLINDER HEAD

Return Part Number

1шт.

3

J941140

SUPPORT

6шт.

4

87435955

PUSH ROD

12шт.

5

J900250

SCREW

COLLET

48шт.

6

J944452

RETAINER

ROTATER, VALVE

12шт.

7

J944711

VALVE SPRING

12шт.

8

87352235

SEAL

Valve Stem

12шт.

8

J943888

SEAL

12шт.

12

NSS

NOT SOLD SEPARAT

HEAD ASSY, STRIPPED

1шт.

15

87343688

STD INLET VALVE

STD ENGINE INLET VALVE Intake

12шт.

16

87343693

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

12шт.

17

87737237

CYLINDER HEAD GASKET,1.81mm Thk

Standard

1шт.

21

J678923

PLUG,M10 x 1

10 MM

1шт.

Includes Ref. 22

1шт.

22

86625087

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

24

87435851

TAPPET

12шт.

25

87644763

GUIDE

Tappet

12шт.

26

87344126

BOLT

M14 x 160

26шт.

27

J943445

CROSSBAR

12шт.

28

87435953

ROCKER ARM

Lever, Intake

6шт.

29

87435951

SHAFT

6шт.

30

J943933

SCREW,Hex Flg, M10 x 1.5 x 68mm, Cl 10.9

12шт.

31

87435952

ROCKER ARM

Lever, Exhaust

6шт.

32

87351063

VALVE SPRING

12шт.

33

87351062

VALVE

ROTATOR

12шт.
