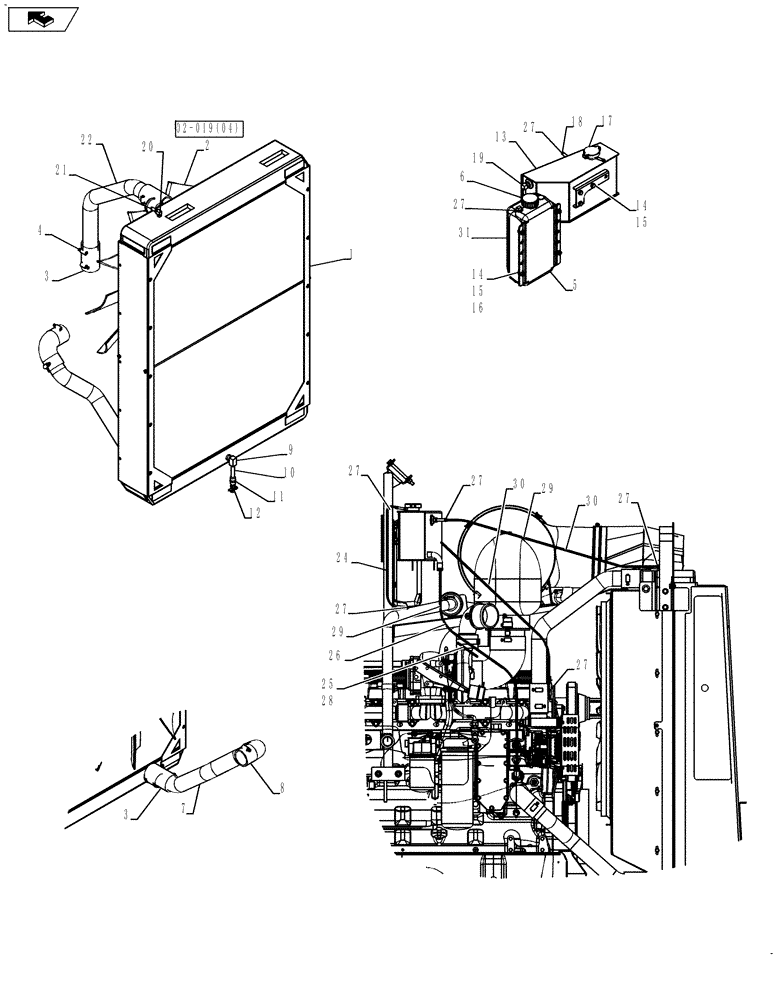

Запчасти Case IH TITAN 4520 (02-019[03]) - RADIATOR COMPONENTS, TITAN 4520, SERIAL NUMBER YAT028756 AND AFTER (01) - ENGINE

1

84208535

RADIATOR

Engine

1шт.

2

NS

NOT SERVICED

Fan

1шт.

See Fig 02-019(04)

1шт.

3

BN324394

RADIATOR HOSE,57.00 mm ID x 110.00 mm, SAE J20, SAE 20R4

Straight Radiator Coupling

3шт.

4

87750942

HOSE CLAMP

8шт.

5

87481454

BOTTLE

Recovery Tank

1шт.

6

86507190

CAP

Coolant Recovery

1шт.

7

343407A1

PIPE

Lower Radiator

1шт.

8

BN324392

RADIATOR HOSE,57.00 mm ID x 110.00 mm, SAE 20R4 Class D1 per SAE J20

Lower Engine

1шт.

9

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

1шт.

10

87266873

NIPPLE

1/4 NPTF X 3 SST

1шт.

11

217-1101

HYD CONNECTOR,1/4"-18 NPTF, Female

1шт.

12

217-92

COCK

Tank Drain

1шт.

13

344297A1

TANK

Dearation

1шт.

14

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 X 17 X 2MM HTS DOR HDN

11шт.

15

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

16

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

17

A170241

RADIATOR CAP

1шт.

18

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1шт.

19

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

20

87267458

ELBOW

90 STREET, 1/8NPT

1шт.

21

87267457

HOSE

Barb, 3/8 X 1/8 NPT

1шт.

22

87271513

PIPE

Upper Radiator

1шт.

23

87487836

CLAMP,0.56" - 1.06"

2шт.

24

BN306821

HOSE,0.75" ID, Bulk

Cut to 28.375" Length

1шт.

25

BN53479

HOSE,1.00" ID BULK

EPDM, Split, Cut to 150 mm Length

1шт.

26

87266870

HOSE,0.75" ID x 31.00"

1шт.

27

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

7шт.

28

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

29

291207C1

CLAMP

4шт.

30

BN311051

HOSE,0.38" ID x 36.00", SAE 30R6, SAE 30R7

2шт.

31

BN306821

HOSE,0.75" ID, Bulk

Recovery Overflow Cut to 5 Feet Length

1шт.
