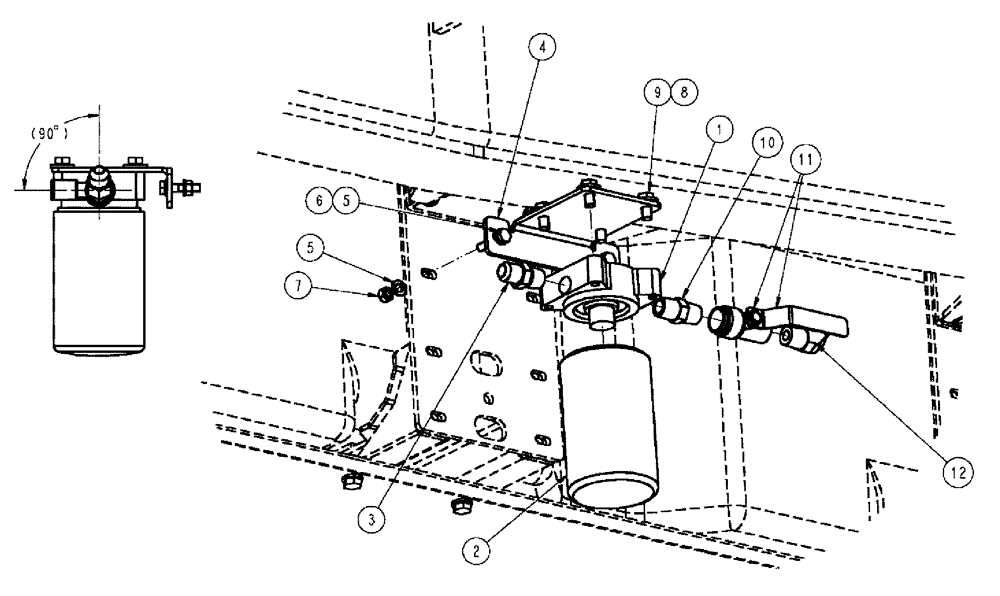

Запчасти Case IH TITAN 4520 (02-013) - FUEL STRAINER GROUP (01) - ENGINE

1

BN319386

FILTER

HEAD, HORZ MOUNT

1шт.

2

BN319388

FUEL FILTER

STRAINER

1шт.

3

BN316060

FITTING

10MJ-8MP

1шт.

4

87268015

BRACKET

FUEL STRAINER

1шт.

5

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

6

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

2шт.

7

86528579

NUT,M8 x 1.25

2шт.

8

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

9

BN311109

NUT

HH, 3/8"-16 x .75, G8

4шт.

10

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

1шт.

11

87265539

VALVE

valve, 1/2" npt full

1шт.

12

87266642

ADAPTER

45 pipe-37 flares 08-10

1шт.
