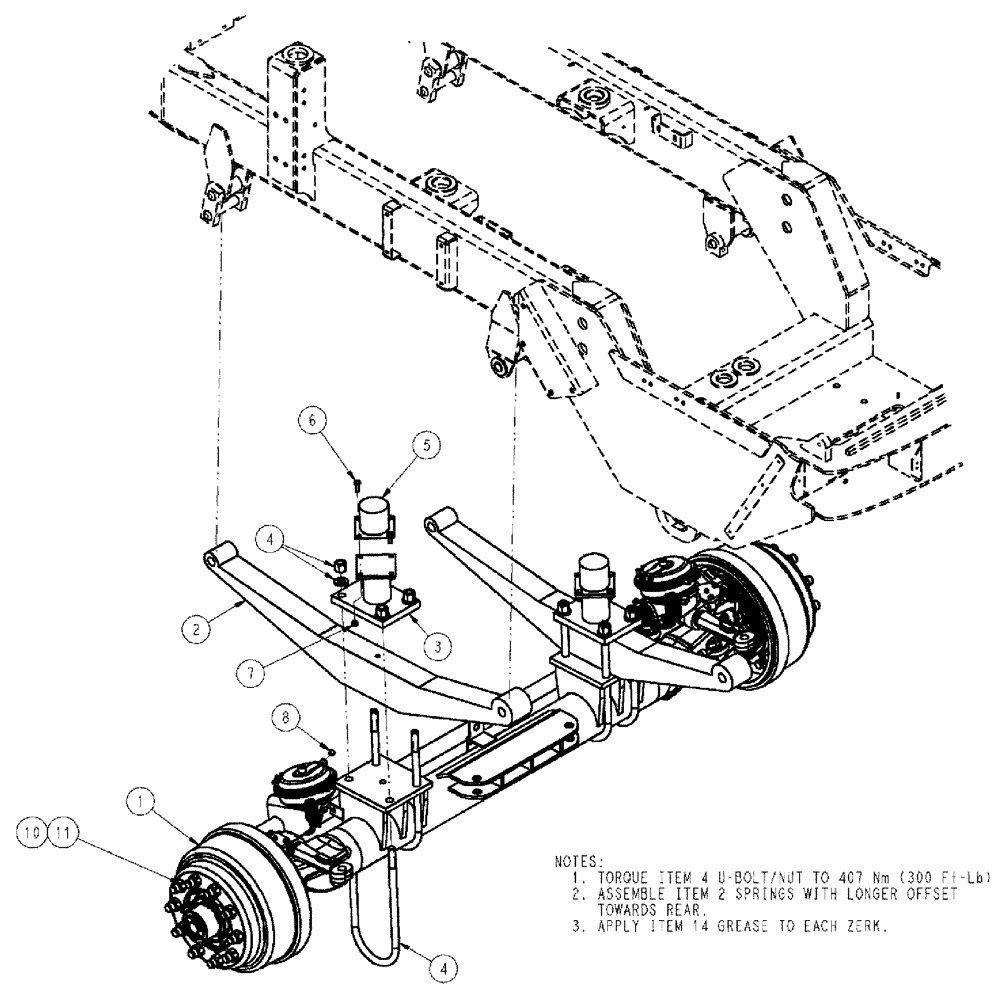

Запчасти Case IH TITAN 4520 (04-001) - FRONT AXLE ASSEMBLY Frame & Suspension

1

87493493

AXLE

Front Steer

1шт.

See Fig. 04-003

1шт.

2

87270793

SPRING

Front Upturned Eye

2шт.

Bushing NSS Included With Spring

1шт.

3

87267450

MOUNTING PLATE

U-BOLT BASE

2шт.

4

87267448

U-BOLT

7/8 X 6-1/2 X 18-1/2

4шт.

5

BN5001054

BUMPER

Rubber, 3 3/8"

2шт.

6

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

7

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

8

217-435

PLUG,Hex Soc, 3/8" - 18 NPTF

2шт.

9

BN55015

NIPPLE, LUBE

NIPPLE Lithium 12 Grade #2

1шт.

10

87654450

WHEEL NUT

Lug LH

10шт.

11

87654448

WHEEL NUT

Lug RH

10шт.
