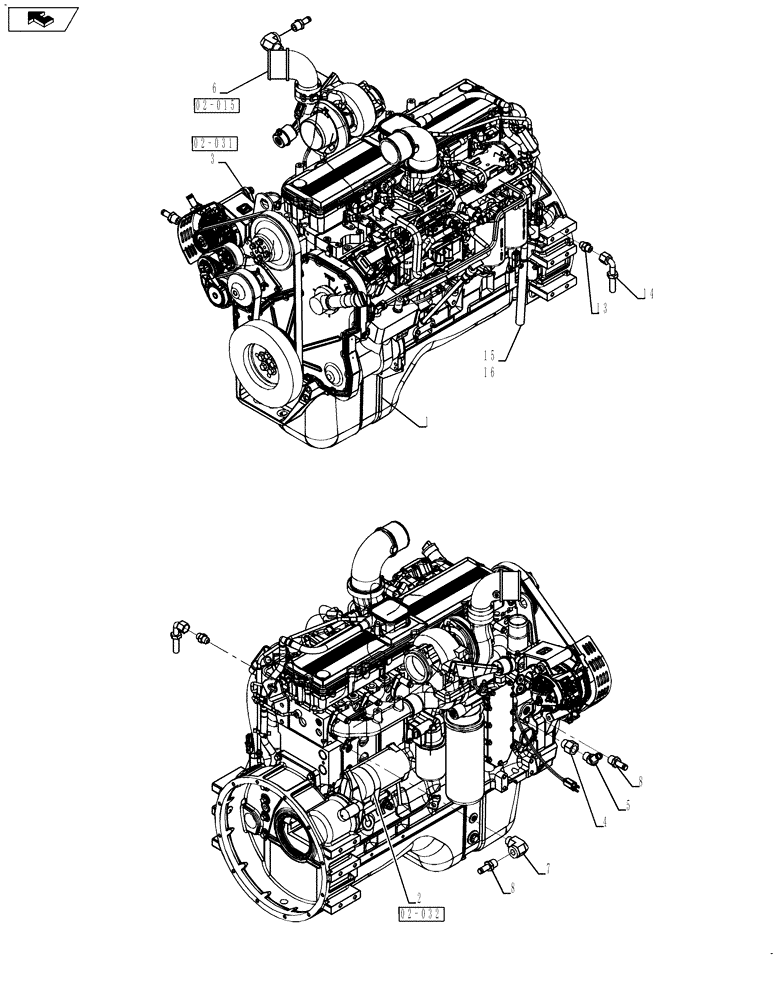

Запчасти Case IH TITAN 4520 (02-002[02]) - ENGINE GROUP, TITAN 4520, SERIAL NUMBER YAT028756 AND AFTER (01) - ENGINE

1

84355945

ENGINE

9L, 365 T3 PEG

1шт.

2

NS

NOT SERVICED

CDC Starter

1шт.

See Fig 02-032

1шт.

3

NS

NOT SERVICED

Alternator Group

1шт.

See Fig 02-031

1шт.

4

BN317988

FITTING

12MP-12FP

1шт.

5

217-145

ELBOW,45 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

1шт.

6

NS

NOT SERVICED

Turbo Elbow Group

1шт.

See Fig 02-015

1шт.

7

BN51937

ELBOW

FT, 90D, 3/4 NPTF, STL STRT

1шт.

8

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

2шт.

9

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

10

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

11

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 X 17 X 2MM HTS DOR HDN

2шт.

12

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

13

BN53591

FITTING

STR THD, 1/2 37FL ORB 5/8

1шт.

14

87535395

FITTING

10GS-10FJX90S, 90º Elbow

1шт.

15

87537782

HOSE,19.05 mm ID x 250.00 mm

Crankcase Breather

1шт.

16

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.
