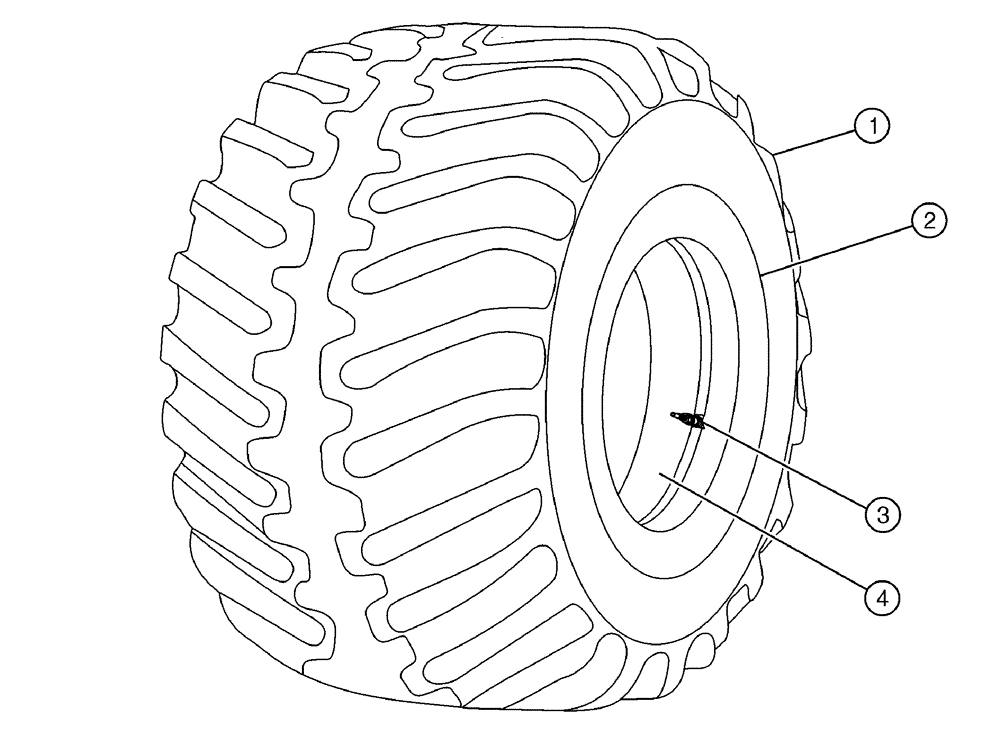

Запчасти Case IH TITAN 4520 (05-004) - 48" FIRESTONE DT Tires

1

PL

PROCURE LOCALLY

Tire, 48 X 31-20 14 PL, FS

1шт.

2

BN311816

WHEEL ASSY

Front

1шт.

2a

87653369

O-RING,6.55mm Thk x 494.03mm ID

20 IN WHL, TITAN

1шт.

Service Parts For Ref. 2

1шт.

2b

BN2297540

O-RING,489.71 mm ID

20" Wheel, McCord

1шт.

Service Parts For Ref. 2

1шт.

2c

87653368

LOCKING RING

20 IN WHL, TITAN

1шт.

Service Parts For Ref. 2

1шт.

2d

BN2391220

LOCKING RING

20" Wheel, McCord #LR20JM

1шт.

Service Parts For Ref. 2

1шт.

2e

87653367

FLANGE

BEAD, 20 IN WHL, TITAN

1шт.

Service Parts For Ref. 2

1шт.

2f

BN2403676

FLANGE

Bead Seat, 20" Wheel, McCord F8020JM

1шт.

Service Parts For Ref. 2

1шт.

3

362766A1

VALVE STEM

TR-618A

1шт.

4

333089A1

DECAL

torque wheel nuts

1шт.

4a

BN2296172-019

WHEEL NUT

Wheel LH

10шт.

Associated Part of Decal, Torque Wheel Nut, P/N 333089A1

1шт.

4b

BN2296172-018

WHEEL NUT

Wheel RH

10шт.

Associated Part of Decal, Torque Wheel Nut, P/N 333089A1

1шт.
