Запчасти Case IH TITAN 4040 (27.126.AA[05]) - DRIVELINE BREAKDOWN, WITH AUXILIARY TRANSMISSION, 4040, 4540 (27) - REAR AXLE SYSTEM

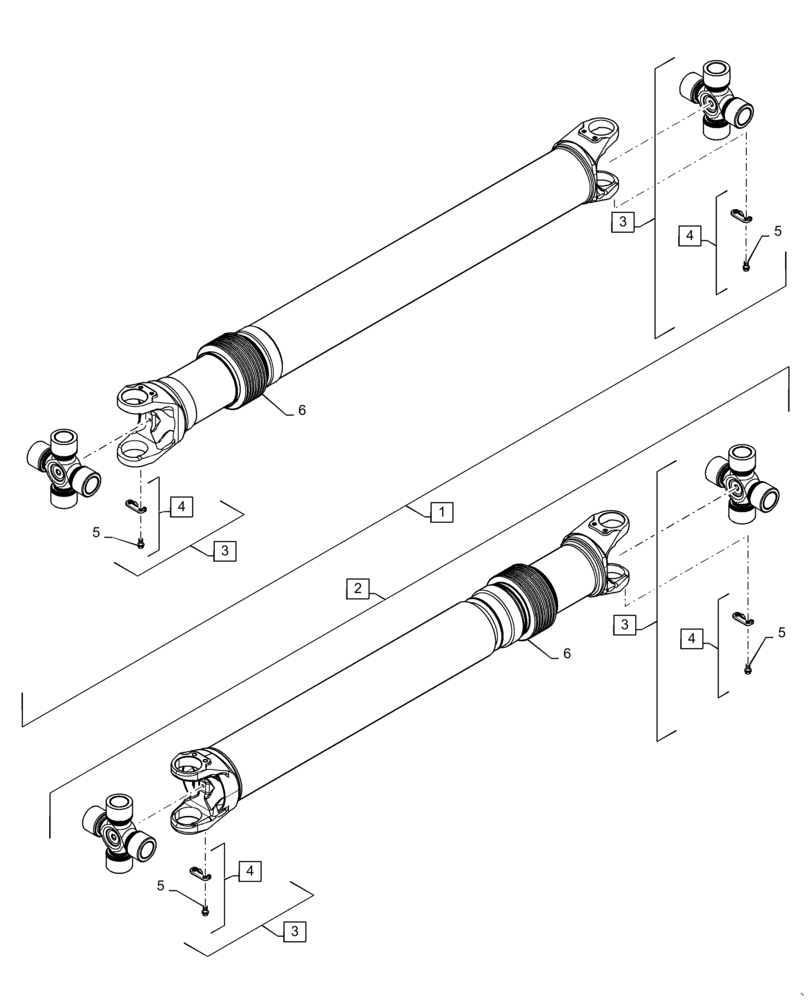

Схема запчастей Case IH TITAN 4040 - (27.126.AA[05]) - DRIVELINE BREAKDOWN, WITH AUXILIARY TRANSMISSION, 4040, 4540 (27) - REAR AXLE SYSTEM
3
4
6
1
5
6
2
4
5
3
3
4
3
5
4
5

Артикул

Название

Примечание

Количество

1

BN323970

DRIVE SHAFT

Slip, Transmission To Auxilary Transmission, Incl 3 - 6

1шт.

2

343803A1

DRIVE SHAFT

Slip, Auxiliary Transmission To Rear Axle, Incl 3 - 6

1шт.

3

87269195

BEARING ASSY

Bearing, Cross, Drive Line, Incl 4, 5

2шт.

4

47766399

KIT

Tab, Locking Driveline, Incl 5

4шт.

5

BN326112

BOLT

Cup Retainer

8шт.

6

47400412

BOOT

Kit, With Clamps

2шт.

Выбрано товаров: 6
