Запчасти Case IH TITAN 4040 (27.100.AK[02]) - REAR AXLE, W/ AUXILIARY TRANSMISSION, 4040, 4540 (27) - REAR AXLE SYSTEM

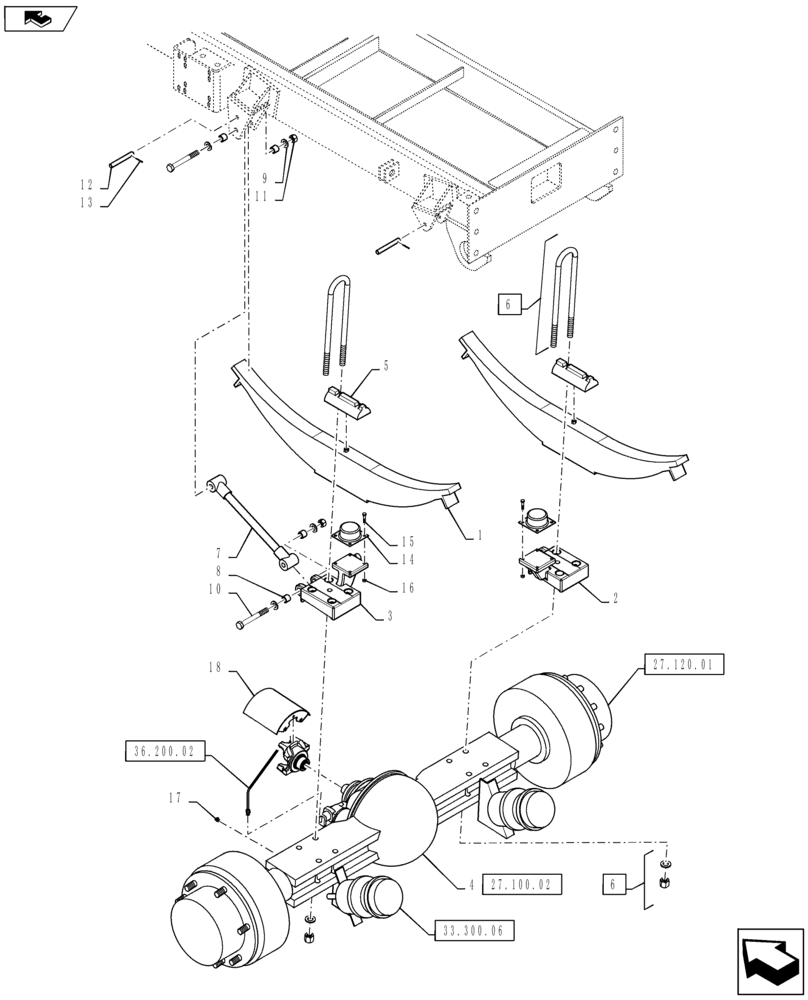

Схема запчастей Case IH TITAN 4040 - (27.100.AK[02]) - REAR AXLE, W/ AUXILIARY TRANSMISSION, 4040, 4540 (27) - REAR AXLE SYSTEM
3
10
6
33.300.06
11
5
15
9
27.120.01
6
14
7
27.100.02
16
4
17
home
12
2
1
18
8
36.200.02
13

Артикул

Название

Примечание

Количество

1

BN305155

LEAF SPRING

Rear, 14 Leaf

2шт.

2

343709A1

PAD

Axle Spring, Right Side, Used With Auxiliary Transmission

1шт.

3

343708A1

PAD

Axle Spring, Left Side, Used With Auxiliary Transmission

1шт.

4

87493492

AXLE

Rear

1шт.

5

87268392

U-BOLT

Seat, Rear

2шт.

6

BN2292167

U-BOLT

1 x 3 1/2 x 21 1/2, Assembly Includes Nuts And Washers

4шт.

7

BN304485

ARM ASSY.

Trailing

2шт.

8

BN304486

BUSHING,22.35mm ID x 31.75mm OD x 26.92mm L

1.25 x .88 x 1.06

8шт.

9

87529313

WASHER,24mm ID x 44mm OD x 4mm Thk

24 x 44 x 4MM, HDN, DOR

8шт.

10

86980478

BOLT,Hex, M22 x 2.5 x 180mm, Cl 8.8

4шт.

11

86980519

NUT,Prev Torque, Hex, M22, 2.5 Pitch, Cl 8, DOR

4шт.

12

BN2391616

PIN,19.05mm OD x 152.4mm L

Rebound

4шт.

13

733-4032

COTTER PIN,M4 x 32

4шт.

14

BN5183018

BUMPER

Rubber

2шт.

15

86980404

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

8шт.

16

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

17

BN41288

LUBE NIPPLE

1/8-27 x 90 Deg

2шт.

18

87269589

GUARD

U-Joint

1шт.

19

47453687

BREATHER

U-Tube, Flx

1шт.

Выбрано товаров: 19
