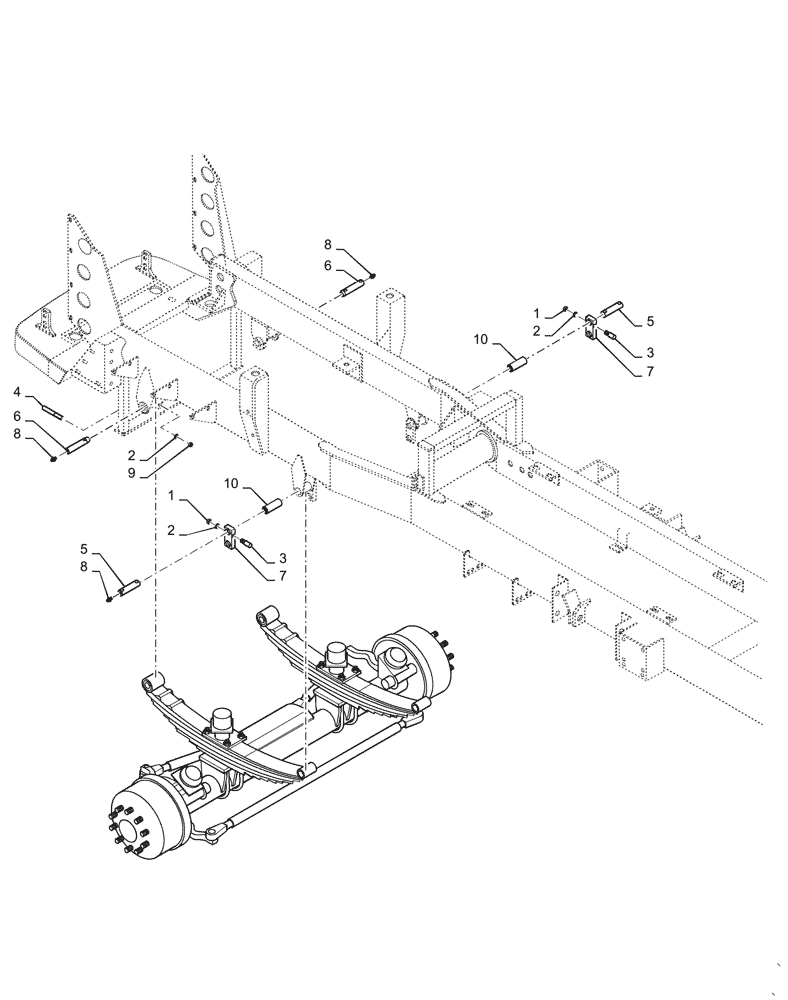

Запчасти Case IH TITAN 4040 (25.400.AM[02]) - FRONT AXLE, MOUNTING PARTS (25) - FRONT AXLE SYSTEM

1

87343970

NUT,3/8"-16, G8, DOR

8шт.

2

87529233

WASHER,0.41" ID x 0.81" OD x 0.09" Thk

0.406 x 0.812 X 0.089, HTS, DOR

10шт.

3

BN2294181

KEY

Draw, Front Axle Rear Pins

8шт.

4

BN2294185

KEY

Draw, Front Axle Front Pins

2шт.

5

BN2391613

PIN,31.7mm OD x 165.1mm L

Shackle, Rear Pins

4шт.

6

BN2391614

PIN,31.7mm OD x 178.82mm L

Front

2шт.

7

BN2394958

SHACKLE

Front Axle, Rear Pins

4шт.

8

BN2651850

LUBE NIPPLE

1/8"-27

6шт.

9

87343675

NUT

3/8-24, GR 5, DOR

2шт.

10

BN2393242

BUSHING,31.75mm ID x 38.1mm OD x 102mm L

Split, Wear, Front Leaf Spring Rear Mount, 38.1mm OD x 102mm Long

2шт.
