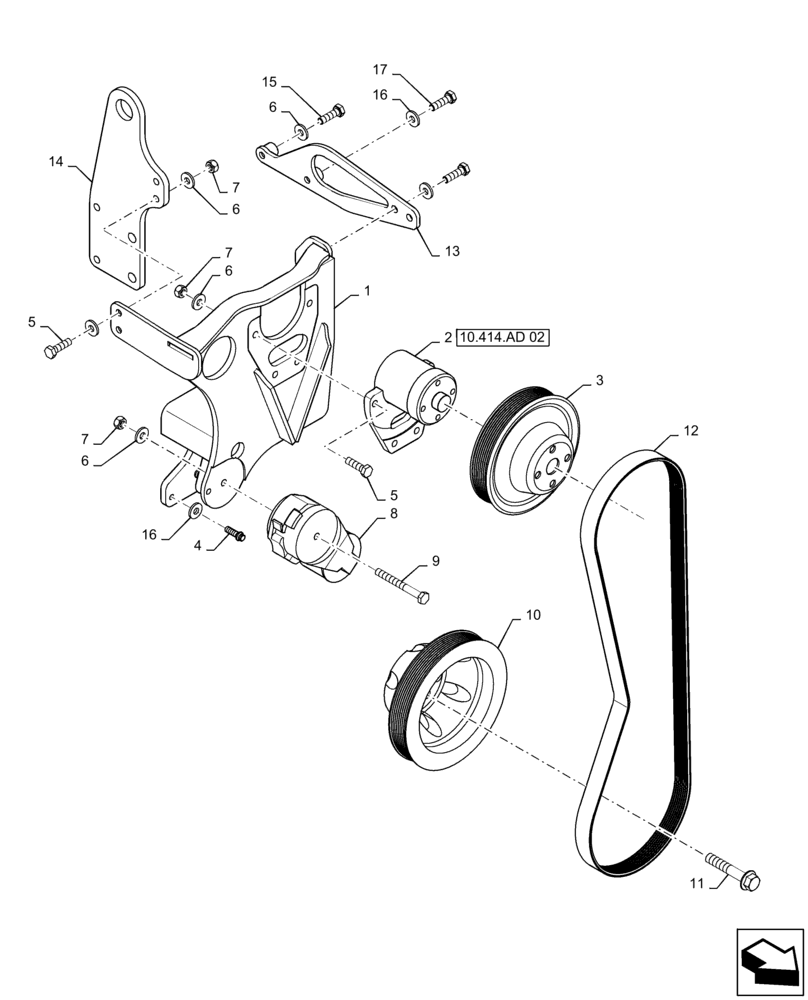

Запчасти Case IH TITAN 4040 (10.414.AD[01]) - FAN DRIVE (10) - ENGINE

1

84527788

SUPPORT

Fan Drive

1шт.

2

47521182

DRIVE

Fan

1шт.

See 10.414.AD 02 For Service

1шт.

3

J926855

PULLEY,187.23mm OD

Fan

1шт.

4

84417255

12 PT SCREW,Flg, M8 x 1.25 x 25mm, Cl 12.9

7шт.

5

87315279

BOLT,Hex, M10 x 35mm, Cl 10.9

8шт.

6

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

14шт.

7

87344003

NUT,M10-1.5, 10, DOR

9шт.

8

84299866

TENSIONER

Belt

1шт.

9

87682400

BOLT,M10-1.5 x 90, 10.9, DOR

1шт.

10

84423080

CRANKSHAFT PULLEY

1шт.

11

84421928

BOLT,M14-2 X 80, 10.9, DOR, Flange

6шт.

12

47552598

BELT

Poly-V, 8 Rib

1шт.

13

84527800

SUPPORT

Fan Drive

1шт.

14

84527803

LUG

Lift

1шт.

15

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

1шт.

16

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

17

9780069

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

1шт.
