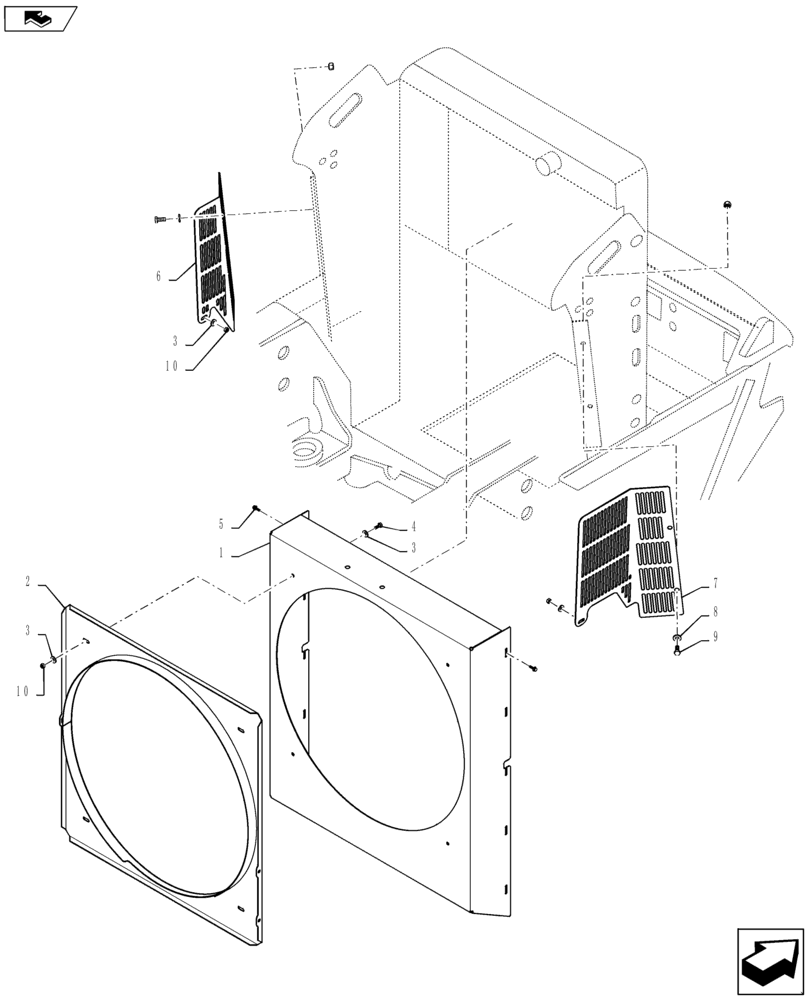

Запчасти Case IH TITAN 4040 (10.400.BF[02]) - RADIATOR FAN SHROUD (10) - ENGINE

1

84225283

SHROUD

Fan

1шт.

2

84226289

PLATE

Fan Guard

1шт.

3

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

10шт.

4

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

5

87343134

SERRATED BOLT

1/4-20 X 3/4, DOR

10шт.

6

84275520

GUARD

Fan

1шт.

7

84275523

GUARD

Fan

1шт.

8

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

9

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

10

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.
