Запчасти Case IH TITAN 4040 (10.304.AP[01]) - REMOTE CRANKCASE VENTILATION FILTER ASSY (10) - ENGINE

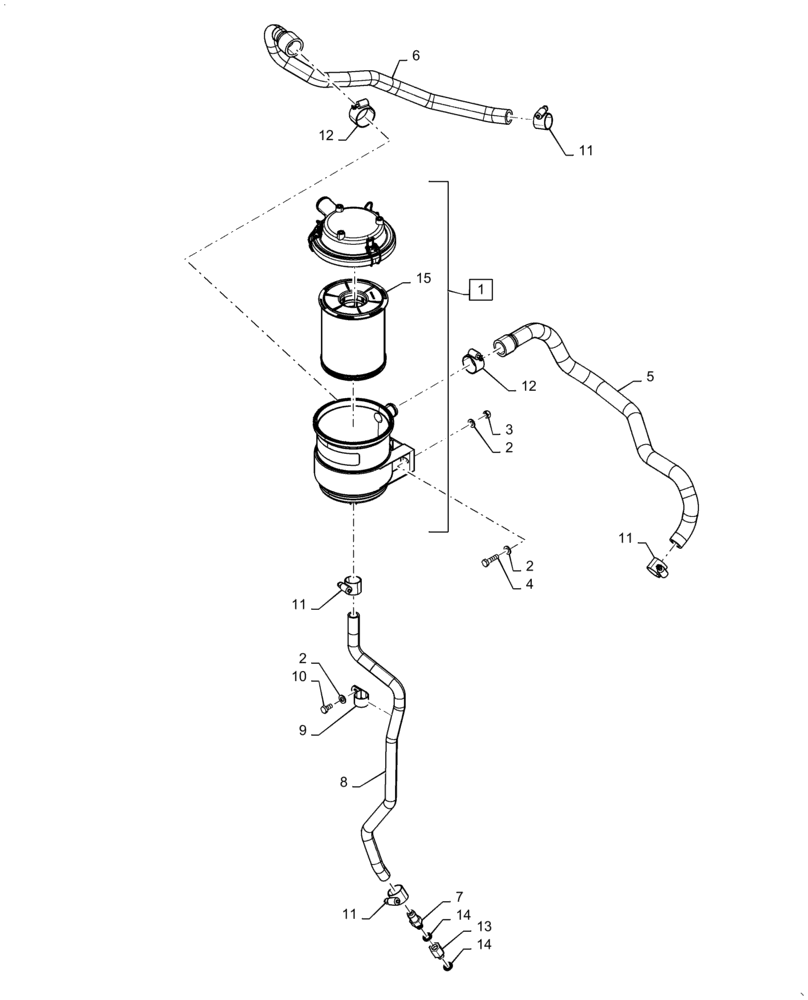

Схема запчастей Case IH TITAN 4040 - (10.304.AP[01]) - REMOTE CRANKCASE VENTILATION FILTER ASSY (10) - ENGINE
11
4
10
13
3
5
2
11
11
14
7
15
14
2
6
11
12
8
9
1
12
2

Артикул

Название

Примечание

Количество

1

84326459

FILTER ASSY

Remote CCV, Complete, Incl 15

1шт.

2

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

5шт.

3

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

4

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

5

84475554

HOSE

Engine To CCV

1шт.

6

84475555

HOSE

CCV To Air Filter

1шт.

7

84326458

CHECK VALVE

CCV

1шт.

8

87267877

HOSE

Bulk, 5/8" ID

1шт.

9

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

10

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

11

87487836

CLAMP,0.56" - 1.06"

# 10, SST

4шт.

12

87487830

CLAMP,0.81" - 1.75"

# 20, SST, W / Liner

2шт.

13

84475560

FITTING

M12 x 1.25 - M12 x 1.75, Brass

1шт.

14

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

15

84376809

ELEMENT

Remote CCV, Incl 1

1шт.

Выбрано товаров: 15
