Запчасти Case IH TITAN 4040 (90.160.AO[01]) - FRONT CONSOLE ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

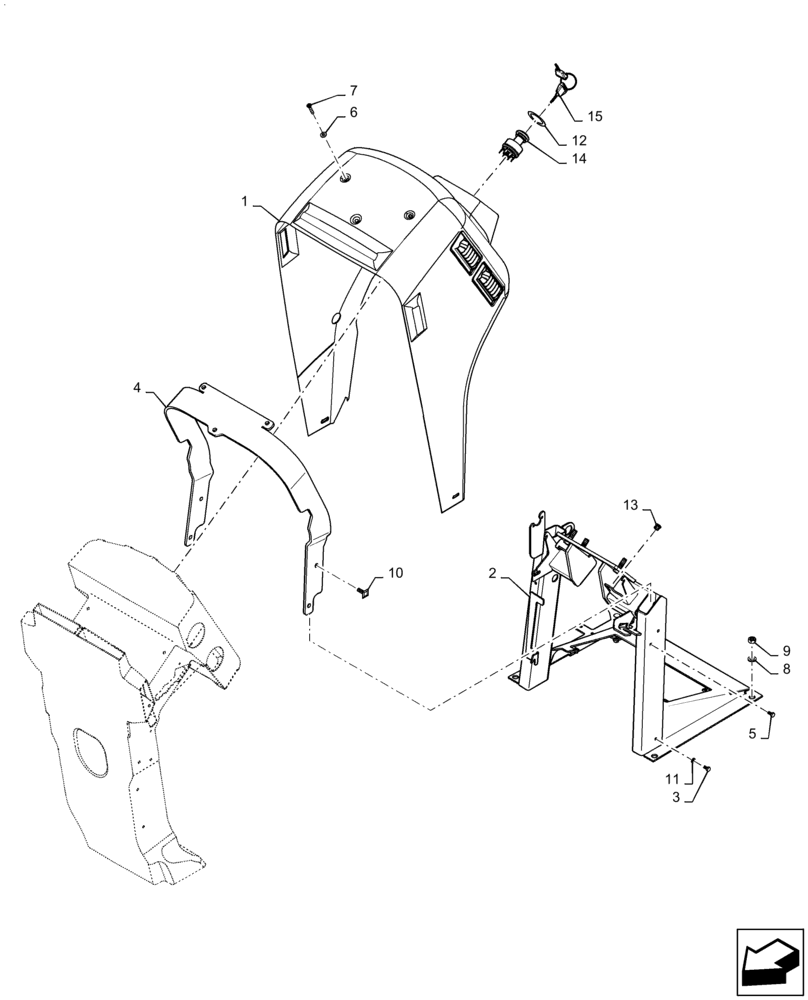

Схема запчастей Case IH TITAN 4040 - (90.160.AO[01]) - FRONT CONSOLE ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
7
11
13
4
14
3
10
15
8
9
6
1
12
2

Артикул

Название

Примечание

Количество

1

360446A1

CONSOLE

Front

1шт.

2

47640965

SUPPORT

Steering

1шт.

3

628-6012

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

2шт.

4

280566A1

SUPPORT

Front Console

1шт.

5

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

6

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

3шт.

7

436276A1

SCREW,BHD, M6 x 1 x 30mm, Class 10.9

Button Head

3шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

9

829-1310

NUT,M10, Cl 10

4шт.

10

301098A1

CLIP

Snap - In

2шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

12

84318400

DECAL

Key Switch

1шт.

13

A67295

PLUG

Control Cable

1шт.

14

363914A1

IGNITION SWITCH

With Padded Keys, Incl 15

1шт.

15

86502201

IGNITION KEY

1шт.

Выбрано товаров: 15
