Запчасти Case IH TITAN 4040 (90.151.AT[02]) - MONITOR, MOUNTING BAR, HORIZONTAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

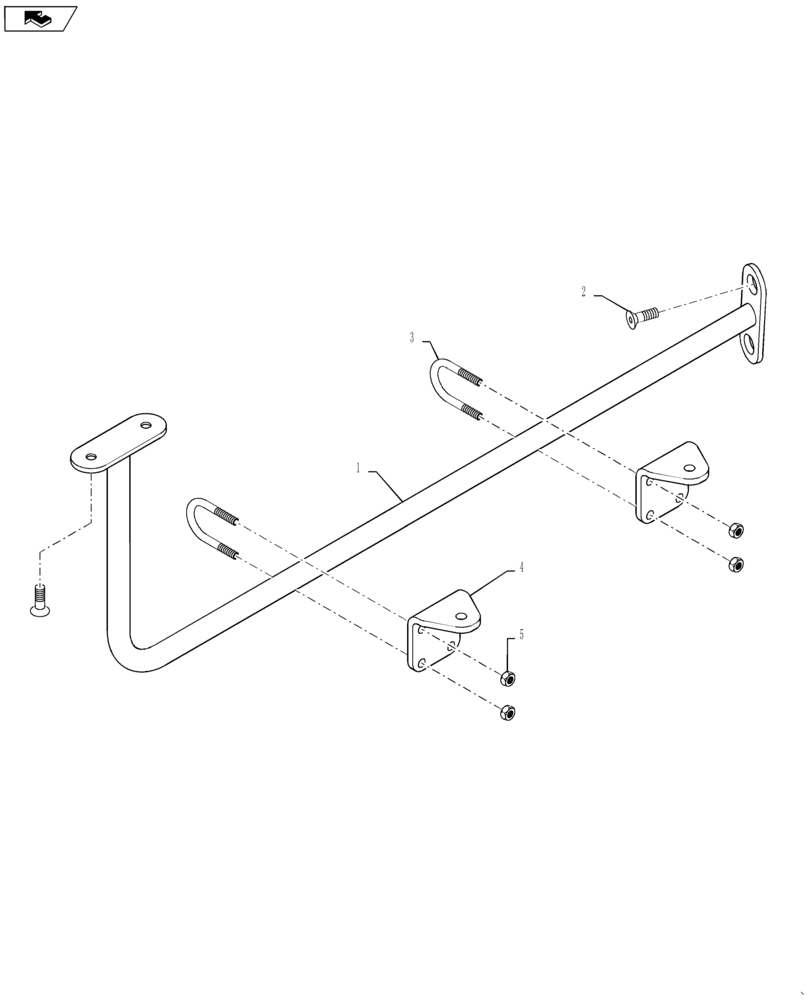

Схема запчастей Case IH TITAN 4040 - (90.151.AT[02]) - MONITOR, MOUNTING BAR, HORIZONTAL (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
1
3
2
home
5

Артикул

Название

Примечание

Количество

1

84143874

BAR

Window Monitor Mount

1шт.

2

14442331

SCREW,Flat Csk Hd, M8 x 1.25 x 35mm, Cl 10.9

M8 x 35mm, 10.9

4шт.

3

87526197

U-BOLT,1/4" - 20 x 1", Round, 1-1/8" W, 2" L

1/4"

4шт.

4

87530660

BRACKET

Monitor Mount

2шт.

5

425-104

NUT,1/4"-20, Cl 5

8шт.

Выбрано товаров: 5
