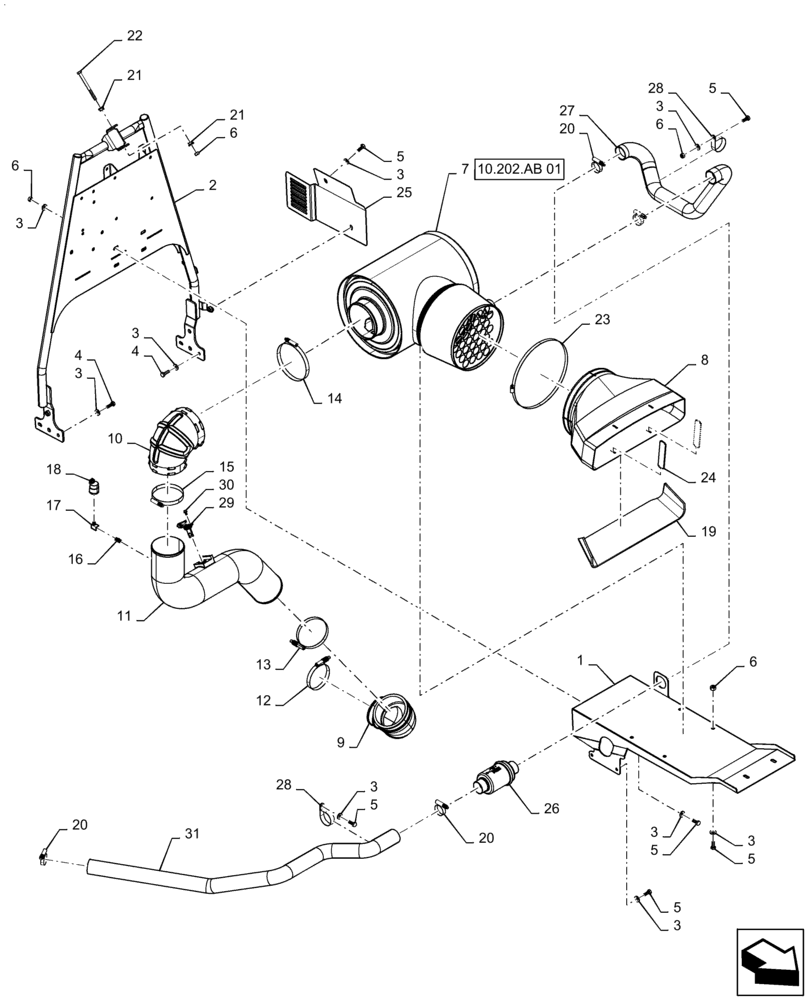

Запчасти Case IH TITAN 4040 (10.202.BD[01]) - AIR CLEANER & INTAKE PARTS AND MOUNTING (10) - ENGINE

1

47493711

MOUNT

Air Cleaner

1шт.

2

47601160

SUPPORT

Air Cleaner

1шт.

3

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

22шт.

4

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

5

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

14шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

10шт.

7

47606527

AIR CLEANER

Assembly

1шт.

See 10.202.AB 01 For Service

1шт.

8

84141992

AIR DUCT

1шт.

9

47562716

90 ELBOW

90°

1шт.

10

87418236

ELBOW

90°

1шт.

11

84363276

AIR INTAKE TUBE

1шт.

12

L124635

HOSE CLAMP

1шт.

13

L124802

COLLAR CLAMP

Constant Torque

1шт.

14

214-32112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm, W/ Liner

1шт.

15

214-3288

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm, W/ Liner

1шт.

16

D36264

FITTING

Adapter, Air Cleaner

1шт.

17

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

18

279492A1

RESTRICTION SWITCH

Air

1шт.

19

344093A1

FOAM INSULATION

Reflective

1шт.

20

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

4шт.

21

87550203

GUIDE BUSHING

Hood Latch Pin

2шт.

22

86980412

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

1шт.

23

87012918

HOSE CLAMP,64mm - 317.5mm

1шт.

24

84180157

PLATE

Standoff

2шт.

25

47601158

SHIELD

Turbo

1шт.

26

87443913

VALVE

Aspirator, Check

1шт.

27

47485246

HOSE

Aspirator Check Valve To Air Cleaner

1шт.

28

515-23571

CLAMP,2 1/4", Insul, 3/8" Bolt

1шт.

29

87482355

SENSOR

Humidity And Temperature

1шт.

30

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

Flange, M6 X 12 Full, 10.9 ZND

2шт.

31

47485248

HOSE

SCR To Check Valve

1шт.
