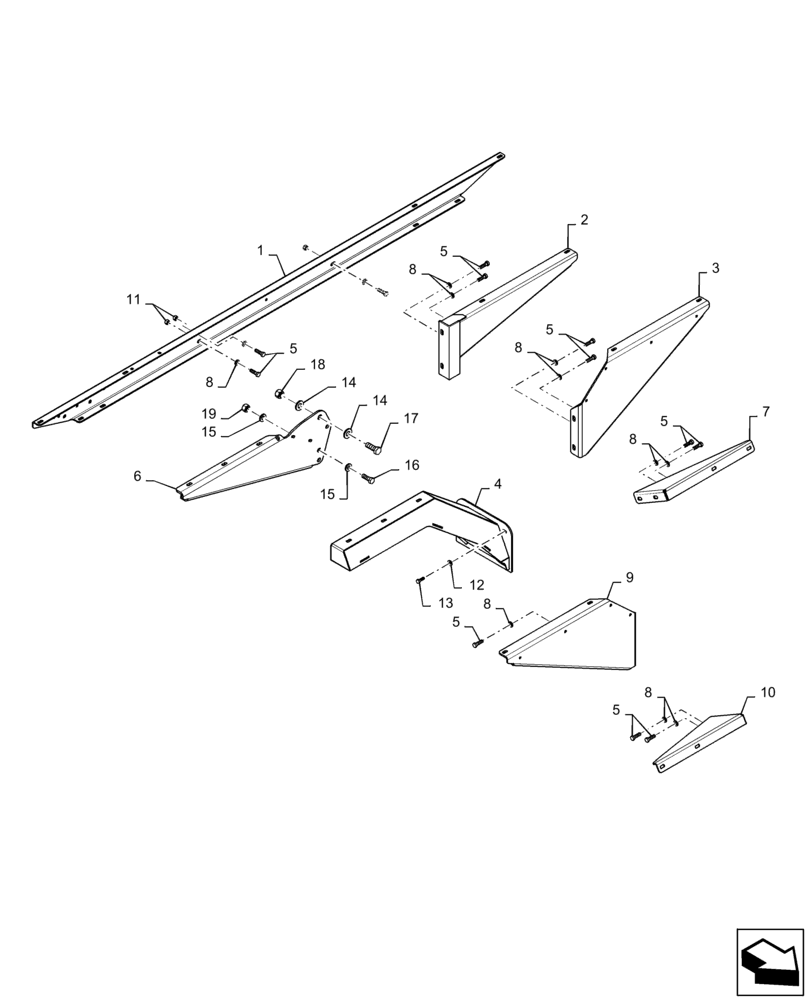

Запчасти Case IH TITAN 4040 (90.118.CB[02]) - WALKWAY MOUNT, 4 WHEEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47516443

MOUNT

Walkway, 4 Wheel

1шт.

2

87268576

SUPPORT

Middle, Walkway

1шт.

3

87675024

SUPPORT

Front, RS

1шт.

4

47516438

MOUNT

Walkway

1шт.

5

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

14шт.

6

47516441

MOUNT

Walkway

1шт.

7

87268582

SUPPORT

Splash, PL RS

1шт.

8

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

18шт.

9

87675012

SUPPORT

Front, CS

1шт.

10

87268581

SUPPORT

Splash, PL CS

1шт.

11

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.

12

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

13

87695423

BOLT,Hex, M10 x 30mm, Cl 10.9

M10 x 30 Full, CL 10.9, DOR

4шт.

14

87310608

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5mm, HTS, HDN, DOR

2шт.

15

87310607

WASHER,17.5mm ID x 34mm OD x 5mm Thk

17.5 x 34 x 5mm, HTS, HDN, DOR

6шт.

16

87027232

BOLT,Hex, M16 x 45mm, Cl 10.9, Full Thd

3шт.

17

87342045

BOLT,Hex, M20 x 2.5 x 55, Class 10.9, DOR

1шт.

18

87024336

NUT,M20 x 2.5, Cl 10

1шт.

19

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

3шт.
