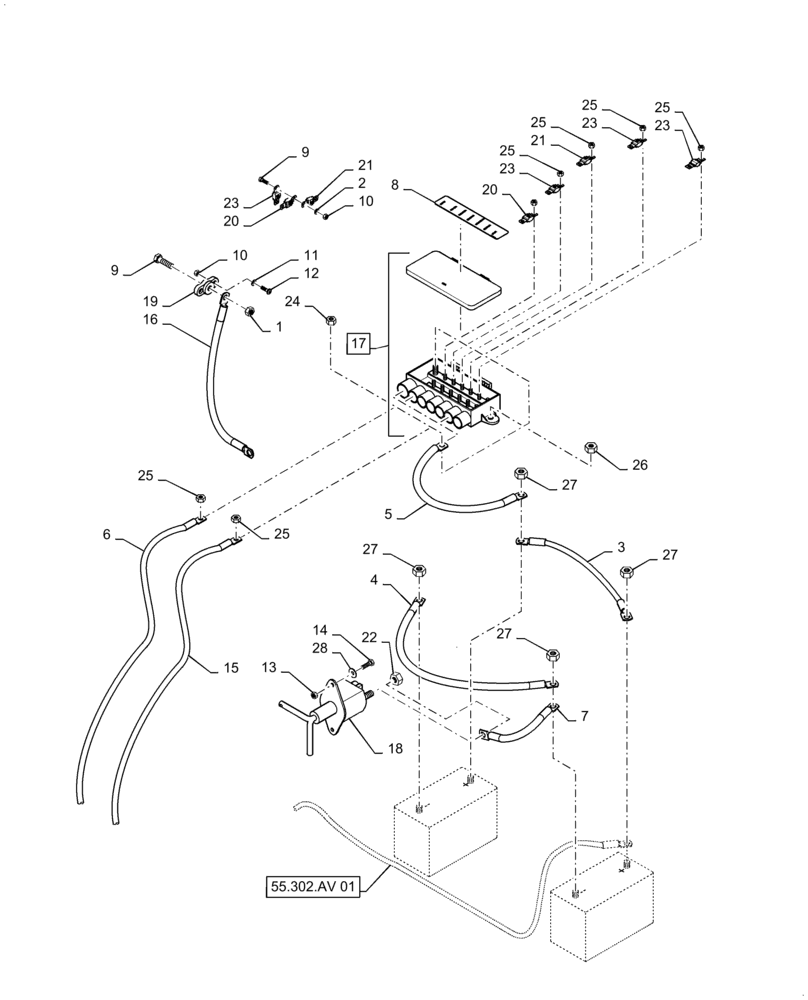

Запчасти Case IH TITAN 4040 (55.302.AI[01]) - BATTERY CUT-OUT AND FUSE BOX (55) - ELECTRICAL SYSTEMS

1

9628503

NUT,3/8"-16, G5

1шт.

2

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

3

84423367

POS BATTERY CABLE

50, M8 Terminal, M8 Terminal, 385mm Long

1шт.

4

84423357

NEG BATTERY CABLE

50, M8 Terminal, M8 Terminal, 500mm Long

1шт.

5

47365538

POS BATTERY CABLE

62, M8 Terminal, M8 Terminal, 435mm Long

1шт.

6

47582626

CABLE

Positive, 32, M6 Terminal, M13 Terminal, 3060mm Long

1шт.

7

84423425

NEG BATTERY CABLE

62, M8 Terminal, M8 Terminal, 235mm Long

1шт.

8

47735029

DECAL

Power Distribution, Fuses

1шт.

9

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

1шт.

10

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

3шт.

11

87529301

WASHER,5.6mm ID x 10mm OD x 1mm Thk

5.6 x 10 x 1 mm CST DOR

2шт.

12

87343600

SCREW,Phil Pan Hd, M5 x 16mm, Cl 4.8, Full Thd

2шт.

13

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

14

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

15

47473881

CABLE

Positive, 13, M5 Terminal, M6 Terminal, 2075mm Long

1шт.

16

84423426

NEG BATTERY CABLE

62, M8 Terminal, M10 Terminal, 320mm Long

1шт.

17

84206083

FUSE BOX

Power Distribution

1шт.

18

47493762

BATTERY CUT-OUT

Battery Disconnect

1шт.

19

20-1451T1

BLOCK

Junction

1шт.

20

84330274

FUSE,125A

125A

2шт.

21

84078783

FUSE,80A, Midival

80A

2шт.

22

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

23

87548130

FUSE,60A, Midival

60A

2шт.

24

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

25

86507064

FLANGE NUT,M5 x 0.8

Flange

6шт.

26

86981461

FLANGE NUT,M8 x 1.25, Cl 8

DOR

2шт.

27

BN50062

LOCK NUT,3/8"-16, Stainless Steel

3шт.

28

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

2шт.
