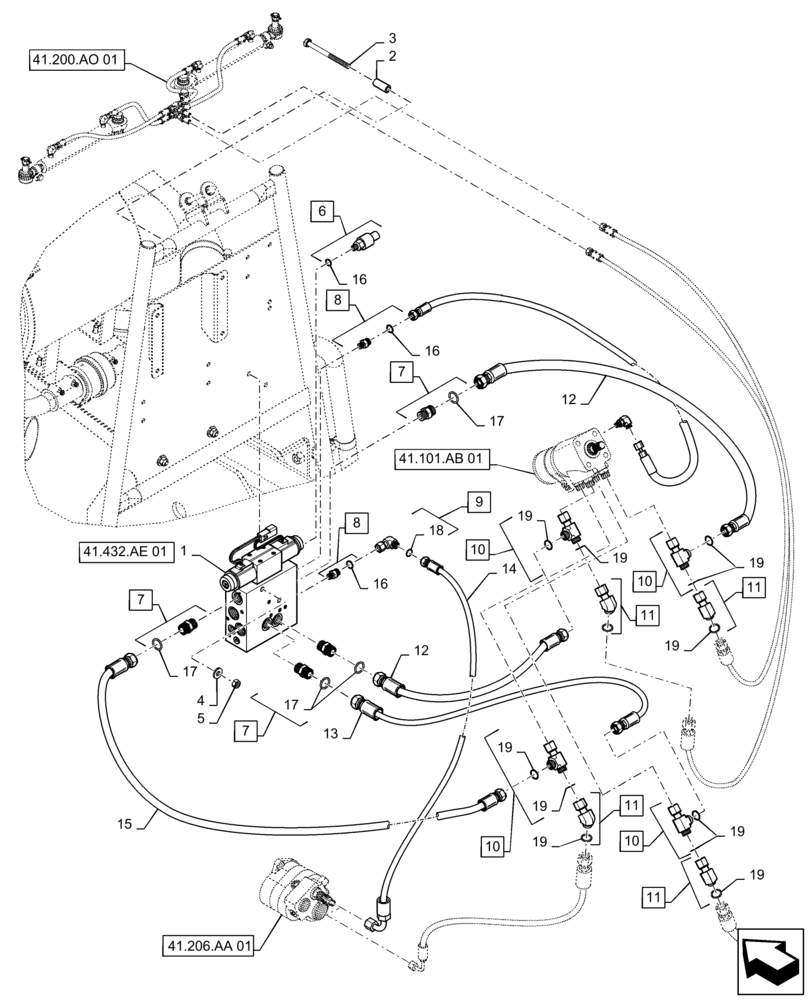

Запчасти Case IH TITAN 4040 (41.432.AC[01]) - AUTOGUIDANCE HYDRAULIC LINES (41) - STEERING

1

84139307

VALVE

Auto Guidance

1шт.

See 41.432.AE 01 For Service

1шт.

2

84265307

TUBE SPACER,10.3mm ID x 15.9mm OD x 36.5mm L

2шт.

3

86980412

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

2шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

6

87428328

PRESSURE SWITCH

3000 PSI, Autoguidance Manual Kick Out, Incl 16

1шт.

7

BN302650

FITTING

13/16 -16 ORFS x 3/4 -16 ORB, Incl 17

4шт.

8

BN302640

FITTING

9/16 -18 ORFS x 7/16 -20 ORB, Incl 16

2шт.

9

84263248

ELBOW UNION

Union Elbow 9/16 - 18 ORFS Female Swivel x 9/16 - 18 ORFS, Incl 18

1шт.

10

BN302436

TEE

13/16 -16 ORFS x 13/16 -16 ORFS Swivel, Incl Ref. 19

4шт.

11

87586601

45 ELBOW

13/16 - 16 ORB x 13/16 - 16 ORFS Swivel, Incl 19

4шт.

12

BN313282

HOSE

13/16 - 16 Female ORFS Swivel x 13/16 - 16 Female ORFS Swivel Elbow x 1/2" ID x 30" Long, Autoguidance Valve To Steering Line Tee

2шт.

13

BN309832

HOSE

13/16 - 16 Female ORFS Swivel Elbow x 13/16 - 16 Female ORFS Swivel Elbow x 1/2" ID x 27" Long, Autoguidance Valve To Orbital Pump Tee

1шт.

14

BN307845

HOSE ASSY.

9/16 - 18 Female ORFS Swivel x 9/16 - 18 Female ORFS Swivel Elbow x 1/4" ID x 24 1/2" Long, Autoguidance Valve To Orbital Pump

1шт.

15

BN309746

HOSE

13/16 - 16 Female ORFS Swivel x 13/16 - 16 Female ORFS Swivel x 1/2" ID x 40" Long, Autoguidance Valve To Orbital Pump Tee

1шт.

16

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

7/16", ORB

2шт.

17

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

4шт.

18

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

9/16", ORFS

1шт.

19

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

12шт.
