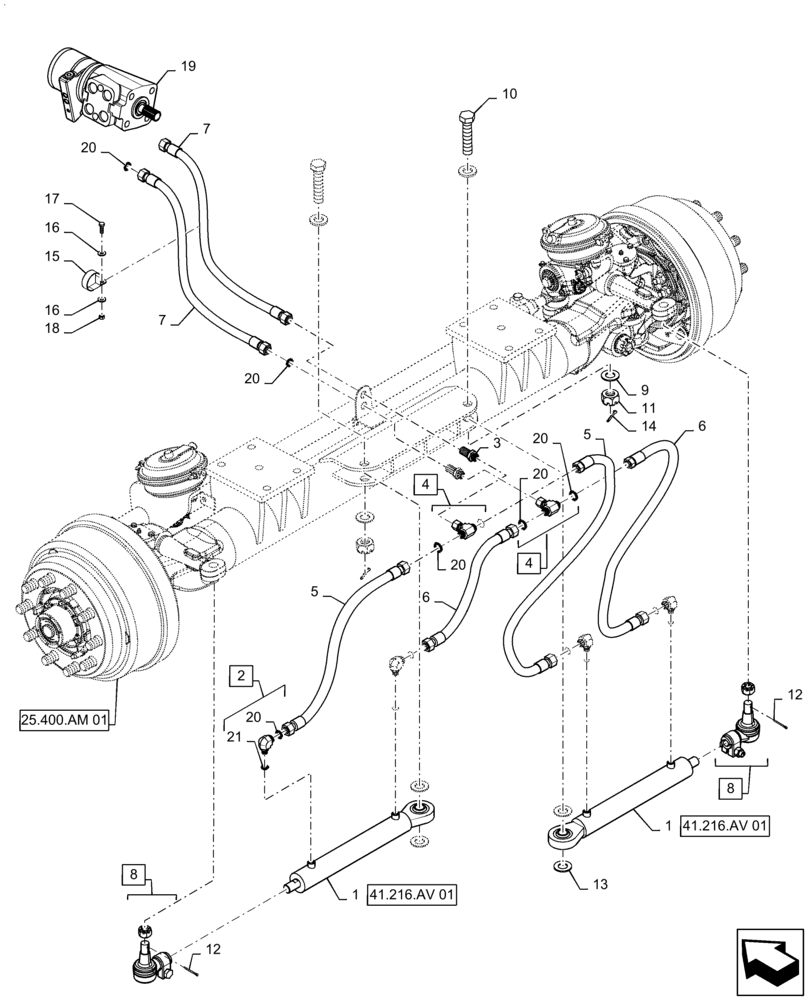

Запчасти Case IH TITAN 4040 (41.200.AO [01]) - STEERING LINES, 4 WHEEL (41) - STEERING

1

87267313

CYLINDER,Double Acting, 25.4mm Rod, 304.8mm Stroke

Hydraulic, Steering, 2.00 x 12 x 1.00

2шт.

See 41.216.AV 01 For Service

1шт.

2

BN302557

FITTING

13/16" - 16 ORFS x 9/16" - 18 ORB Swivel, Elbow, Incl 20

4шт.

3

BN309493

BULKHEAD

13/16" - 16

2шт.

4

BN309492

TEE

8MOR, 8MOR, 8FOR

2шт.

5

BN309661

HOSE

13/16" - 16 Female ORFS Swivel x 13/16" - 16 Female ORFS Swivel x 1/2" ID x 15" Long

2шт.

6

BN309662

HOSE

13/16" - 16 Female ORFS Swivel x 13/16" - 16 Female ORFS Swivel x 1/2" ID x 26" Long

2шт.

7

BN313838

HOSE

13/16" - 16 Female ORFS Swivel x 13/16" - 16 Female ORFS Swivel 45 Elbow x 1/2" ID x 72" Long

2шт.

8

87266552

REPAIR KIT

Tie Rod End, Female, 1-16 Thread, Includes Castle Nut

2шт.

9

87529235

WASHER,1.06" ID x 2" OD x 0.21" Thk

1.0625 x 2 x 0.209, HTS, DOR

4шт.

10

87525370

BOLT

1 - 8 x 4.5", Gr 5, DOR, With Hole

2шт.

11

87343900

SLOTTED NUT

1-8 GR 5 DOR

2шт.

12

733-4040

COTTER PIN,M4 x 40

2шт.

13

87529238

WASHER,1.06" ID x 2" OD x 0.13" Thk

1.062 X 2.000 X .134, HDN, DOR

4шт.

14

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16 X 2"

2шт.

15

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

16

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

17

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

18

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

19

410874A1

PUMP

Steering Orbital

1шт.

20

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

12шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

4шт.
