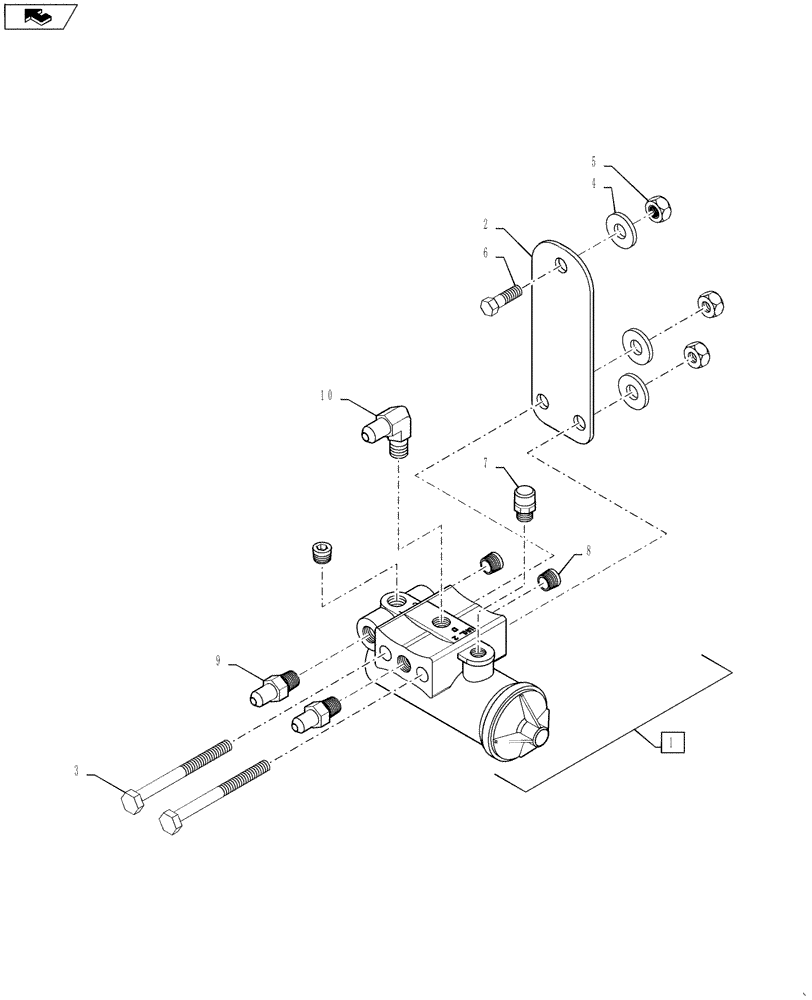

Запчасти Case IH TITAN 4030 (36.100.03) - AIR COMPRESSOR GOVERNOR (36) - PNEUMATIC SYSTEM

1

BN2290733

GOVERNOR

Air, Includes Ref. 8, and Ref. 11

1шт.

2

84179917

MOUNT

Governor

1шт.

3

87341844

BOLT,Hex, M8 x 75mm, Cl 8.8

M8 x 75, 8.8, DOR

2шт.

4

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

5

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

3шт.

6

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

7

BN2293227

BREATHER

1/8" NPT

1шт.

8

BN1666155

PLUG

Allen Head, 1/8"

4шт.

9

BN441005

ADAPTER

Pipe, 37 Flare, 04-02

2шт.

10

BN2290148

ELBOW

Elbow, 37 Flare, 1/4" Tube x 1/8" NPTF

1шт.

11

BN2390706

GASKET

Governor, (Not Shown)

1шт.
