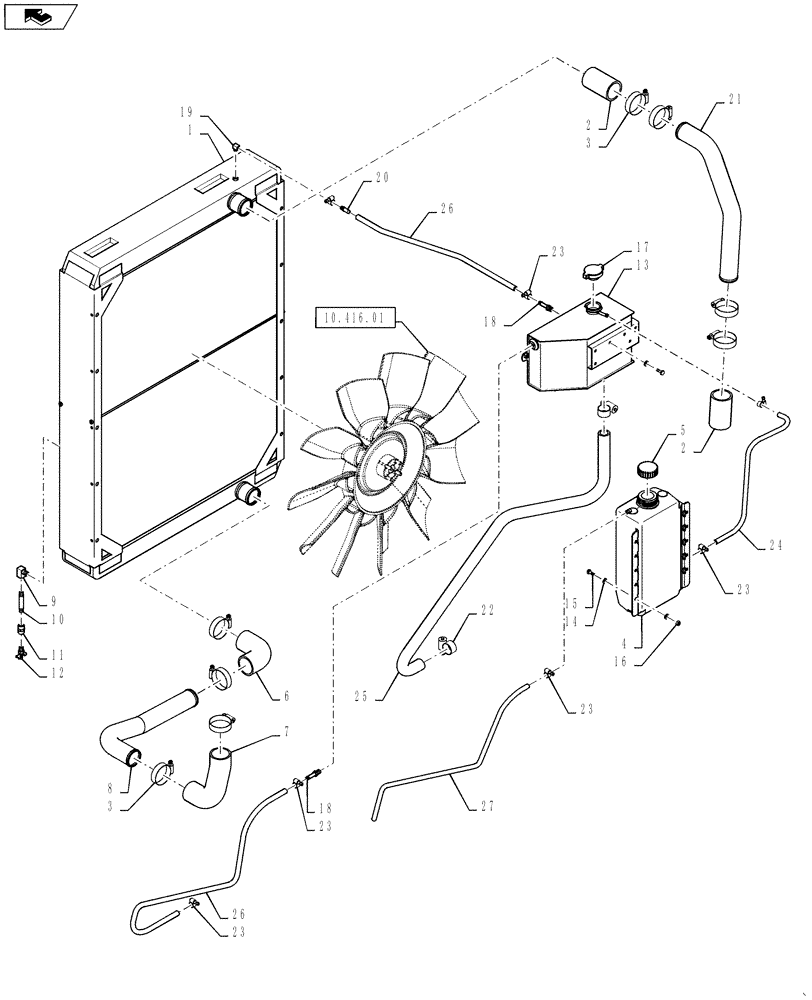

Запчасти Case IH TITAN 4030 (10.406.01) - RADIATOR AND COMPONENTS (10) - ENGINE

1

84208535

RADIATOR

Engine

1шт.

2

BN324394

RADIATOR HOSE,57.00 mm ID x 110.00 mm, SAE J20, SAE 20R4

Straight Radiator Coupling

2шт.

3

87750942

HOSE CLAMP

2-5/16" To 3"

8шт.

4

87481454

BOTTLE

Tank, Coolant Recovery, 5 QT

1шт.

5

86507190

CAP

Coolant Recovery Bottle

1шт.

6

BN324392

RADIATOR HOSE,57.00 mm ID x 110.00 mm, SAE 20R4 Class D1 per SAE J20

Lower Engine

1шт.

7

84156734

RADIATOR HOSE,57.00 mm ID x 181,100 mm, SAE J20,SAE J20R4 CLASS D1

Lower

1шт.

8

84172355

TUBE,57.00 mm OD

Lower

1шт.

9

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

1шт.

10

87266873

NIPPLE

1/4" NPT x 3", SS

1шт.

11

217-1101

HYD CONNECTOR,1/4"-18 NPTF, Female

1шт.

12

217-92

COCK

Drain

1шт.

13

84181900

TANK

Dearation

1шт.

14

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

11шт.

15

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

16

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

17

A170241

RADIATOR CAP

15 PSI

1шт.

18

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

2шт.

19

87267458

ELBOW

90°, 1/8" NPT

1шт.

20

87267457

HOSE

Barb, 3/8" X 1/8" NPT

1шт.

21

84172353

TUBE,57.00 mm OD x 445, 243 mm L

1шт.

22

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

23

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

7шт.

24

BN306821

HOSE,0.75" ID, Bulk

Cut To Length Of 28.375"

1шт.

25

84325546

HYDRAULIC HOSE

1шт.

26

87267875

FUEL HOSE,9.53mm ID x 2076.45mm L, SAE 30R7

Cut To Length Of 81.75"

1шт.

27

BN306821

HOSE,0.75" ID, Bulk

Cut To Length Of 60"

1шт.
