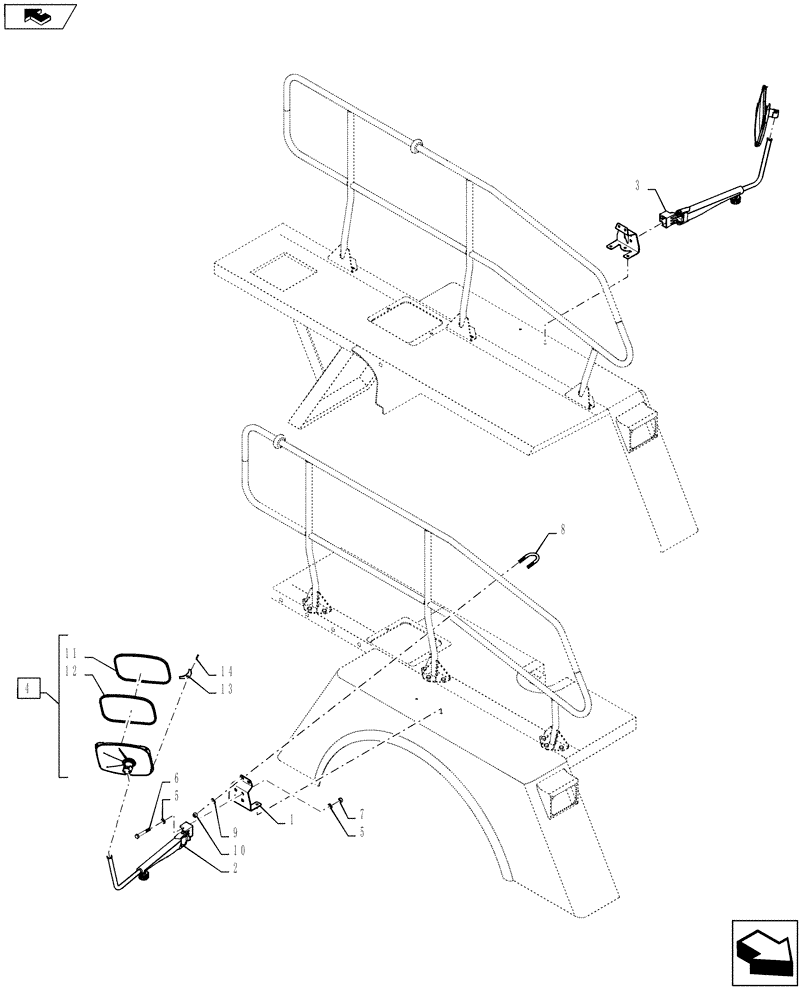

Запчасти Case IH TITAN 4030 (90.150.12[05]) - WALKWAY MOUNTED MIRRORS, LOW, USED ON 810 FLEX-AIR SYSTEM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87267461

MOUNTING PARTS

Mirror Mounting Bracket

2шт.

2

87594289

ARM

Mirror, Lower Right Hand

1шт.

3

87594290

ARM

Mirror, Lower Left Hand

1шт.

4

87350494

MIRROR ASSY.,240mm x 329mm

Manual, Includes Ref 11 - 14

2шт.

5

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

6

86980428

BOLT,Hex, M12 - 1.75 x 80mm, Cl 8.8, DOR

M12 - 1.75 x 80, 8.8, DOR

4шт.

7

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.

8

87267464

U-BOLT

3/8"-16 x 1.5 ID x 2.50

2шт.

9

87529237

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

0.406 x 0.812 x 0.065, HTS, DOR, HDN

4шт.

10

87343970

NUT,3/8"-16, G8, DOR

4шт.

11

324437A1

REPLACEMENT MIRROR

Glass

1шт.

12

82035218

MIRROR,300mm x 200mm

Lens, Acrylic, 300mm x 200mm

1шт.

13

87531094

BRACKET

Manual Mirror Head

4шт.

14

15902707

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 19mm

4шт.
