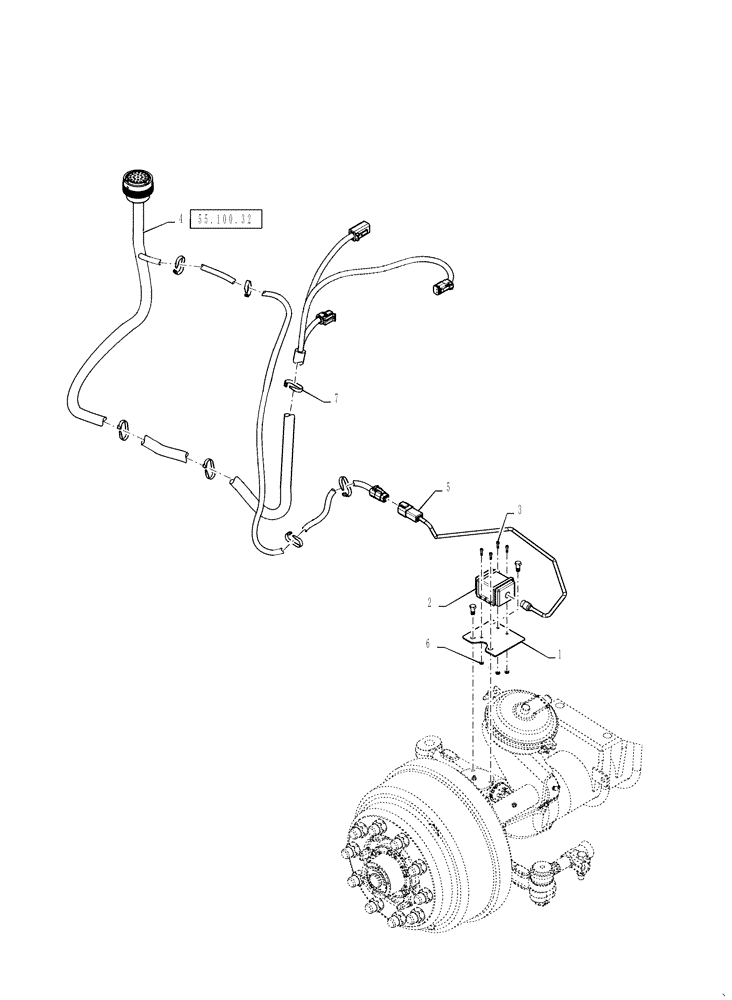

Запчасти Case IH TITAN 4030 (55.911.05) - FRAME AUTOGUIDANCE (55) - ELECTRICAL SYSTEMS

1

84261049

MOUNT

Autoguide Sensor

1шт.

2

87743199

MODULE

Autoguide Steering Angle Sensor

1шт.

3

767388

HEX SOC SCREW,#6 - 32 x 1/2"

4шт.

4

84572476

HARNESS

Autoguidance, External

1шт.

See Fig 55.100.32 For Service Parts

1шт.

5

87743200

HARNESS

Jumper, 24", Autoguidance Steering Angle Sensor to Autoguidence Frame Harnes

1шт.

6

88458

NUT,#6 - 32, Gr 5

4шт.

7

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.
