Запчасти Case IH TITAN 4030 (55.521.03) - RH CONTROL CONSOLE, 610 LIQUID APPLICATOR (55) - ELECTRICAL SYSTEMS

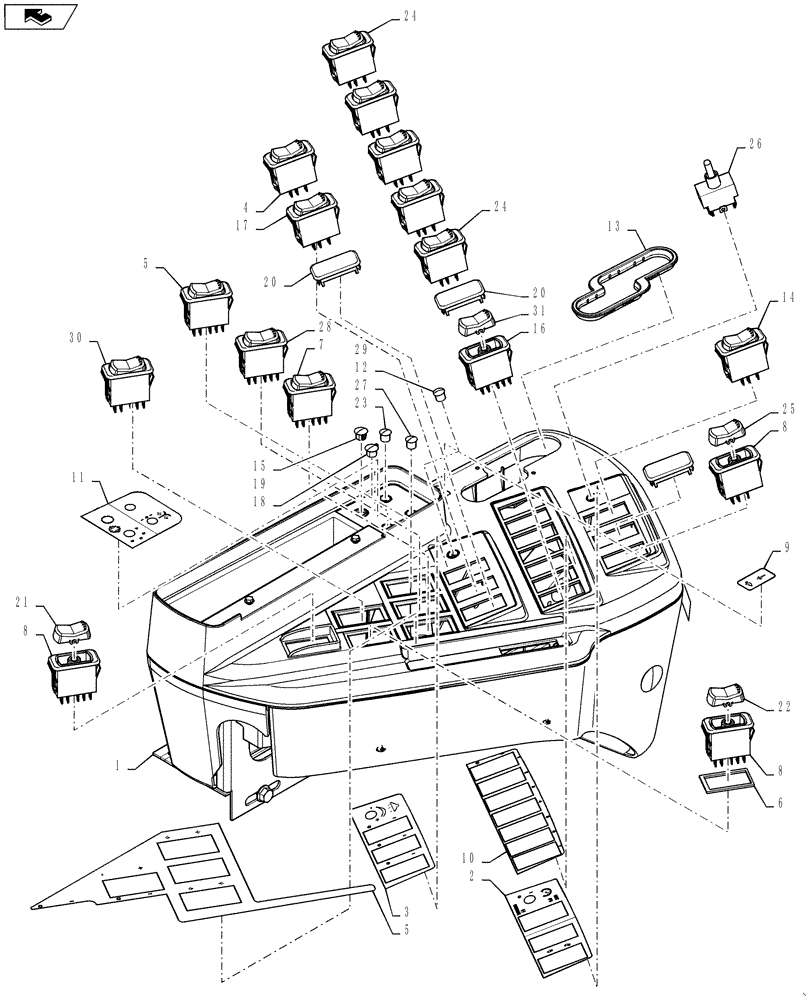

Схема запчастей Case IH TITAN 4030 - (55.521.03) - RH CONTROL CONSOLE, 610 LIQUID APPLICATOR (55) - ELECTRICAL SYSTEMS
24
30
8
14
6
8
29
28
20
12
9
20
19
5
5
home
21
10
4
3
8
1
17
7
25
23
2
22
31
15
26
24
16
27
13
18
11

Артикул

Название

Примечание

Количество

1

377999A1

CONSOLE

Panel, RH Controls

1шт.

2

87266888

DECAL

Boom Lock/Unlock

1шт.

3

87266885

DECAL

Foam Control

1шт.

4

BN321912

SWITCH

Foam Marker Activate

1шт.

5

87266894

DECAL

Boom Position

1шт.

6

BN321913

SWITCH

Boom Fold LH, 60'/85' Booms Only

1шт.

7

BN321915

SWITCH

Boom Fold RH, 60'/85' Booms Only

1шт.

8

87388415

SWITCH

Lower Rocker Body

3шт.

9

BN324087

DECAL

Decelerate

1шт.

10

87266886

DECAL

Boom Section

1шт.

11

87265571

DECAL

Tank Rinse/Aux Transmission

1шт.

12

118780A1

KNOB

Foam Marker Control

1шт.

13

128833A2

GUIDE

Propulsion Control Lever

1шт.

14

BN324151

SWITCH

Cruise Control Set

1шт.

15

282056A1

PLUG

Black

2шт.

16

BN324396

SWITCH

Boom Section Select

1шт.

17

BN321916

SWITCH

Sparge Pressure

1шт.

18

BN325192

SWITCH

Rotary, 4-Position

1шт.

19

342794A1

KNOB

Transmission Range Select

1шт.

20

BN322626

PLUG

Rocker Switch Blank

4шт.

21

BN322904

SWITCH

Park Brake

1шт.

22

BN325000

SWITCH

Main Power

1шт.

23

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

24

BN321910

SWITCH

Boom Section Control

5шт.

25

344064A1

SWITCH

Boom Lock

1шт.

26

BN24129

SWITCH

Cruise Control, On/Off

1шт.

27

BN35846

SWITCH

Wash Down, Wash Tank/ Gun

1шт.

28

343664A1

SWITCH

Boom Tip Shut-Off, 60’/85' Boom

1шт.

29

114550A1

POTENTIOMETER,1000 Ohm, 500V

Foam Marker Control

1шт.

30

343262A1

SWITCH

Product Pump Enable

1шт.

31

BN321911

SWITCH

Fence Row Rocker

1шт.

32

84228539

DECAL

Control Lever Spray Function, Located On Propulsion Lever, Not Shown

1шт.

33

127597A1

SWITCH

Foam Marker, Located On Propulsion Lever, Not Shown

1шт.

34

BN321530

SWITCH

Spray On/Off, Located On Propulsion Lever, Not Shown

1шт.

35

BN324896

SWITCH

Assembly, Boom Control, Located On Propulsion Lever, Not Shown

2шт.

Выбрано товаров: 35
