(55.513.01) - TRANSMISSION ELECTRICAL, RH CONSOLE AND HARNESSES

Запчасти Case IH TITAN 4030 (55.513.01) - TRANSMISSION ELECTRICAL, RH CONSOLE AND HARNESSES (55) - ELECTRICAL SYSTEMS

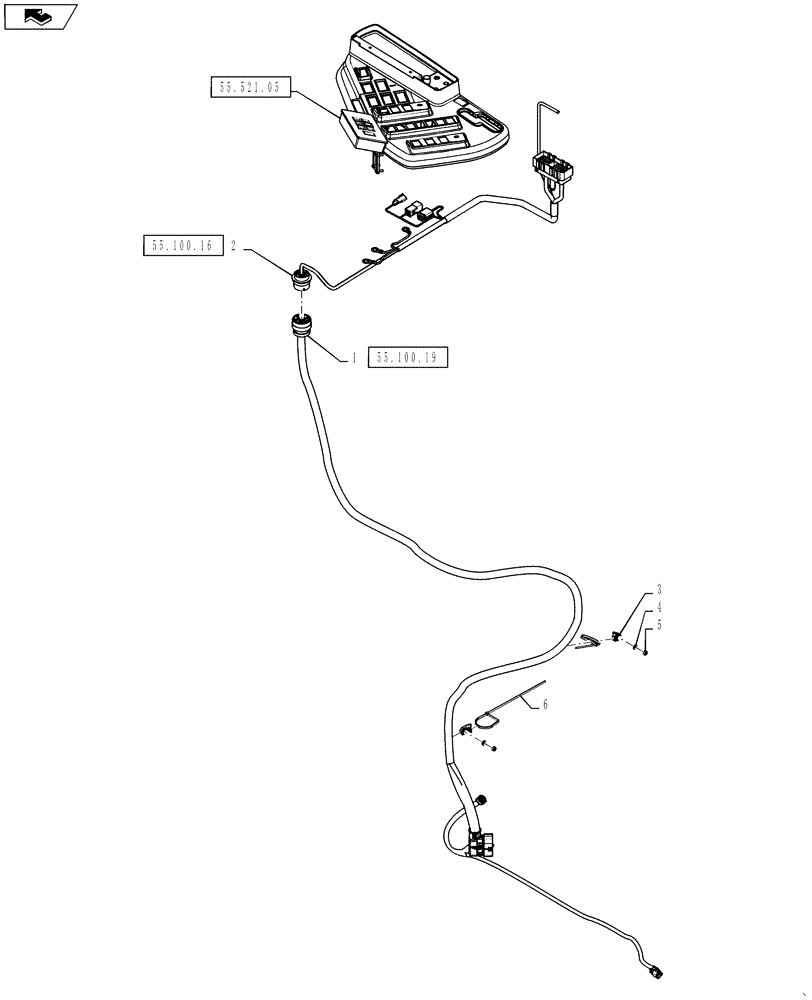

Схема запчастей Case IH TITAN 4030 - (55.513.01) - TRANSMISSION ELECTRICAL, RH CONSOLE AND HARNESSES (55) - ELECTRICAL SYSTEMS
1
6
55.521.05
55.100.19
55.100.16
2
home
5
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84299319

WIRE HARNESS

Transmission

1шт.

See Fig 55.100.19 For Service Parts

1шт.

2

84191976

WIRE HARNESS

Transmission Cab, LH Compartment

1шт.

See Fig 55.100.16 For Service Parts

1шт.

3

84340333

BASE PLATE

Tie

2шт.

4

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

5

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

6

BN570007

STRAP

Black, 14-1/2" Long

2шт.
