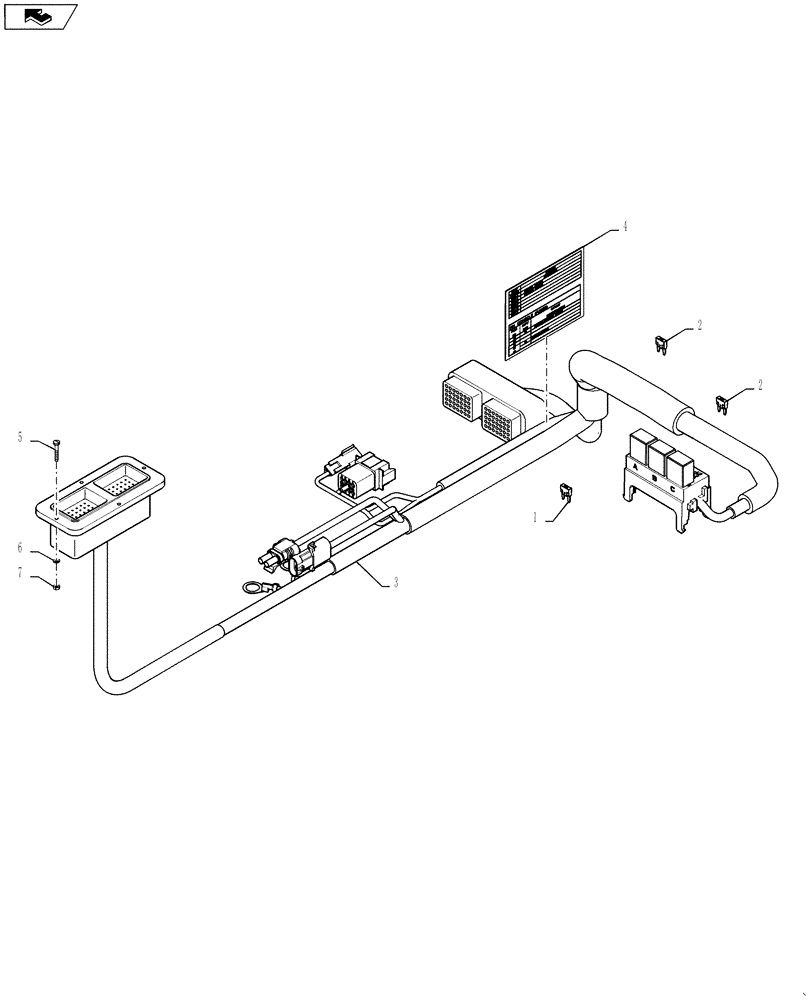

Запчасти Case IH TITAN 4030 (55.510.02) - CAB ELECTRICAL, LH COMPARTMENT, BARE CHASSIS (55) - ELECTRICAL SYSTEMS

1

121414A1

FUSE,20A, Mini, Yellow

1шт.

2

121415A1

FUSE,25A, Mini, Clear

2шт.

3

84533020

WIRE HARNESS

LH Compartment, Bare Chassis

1шт.

See Fig 55.100.15 For Service Parts

1шт.

4

87272476

DECAL

Fuse/Relay, No Bed

1шт.

5

86511817

SCREW,Pan, M3 x 0.5 x 20mm, Cl 4.8

M3x20 PHD Full H 4.8 Znd

3шт.

6

86509827

LOCK WASHER,M3

3шт.

7

86508812

NUT,M3, Cl 8

3шт.
