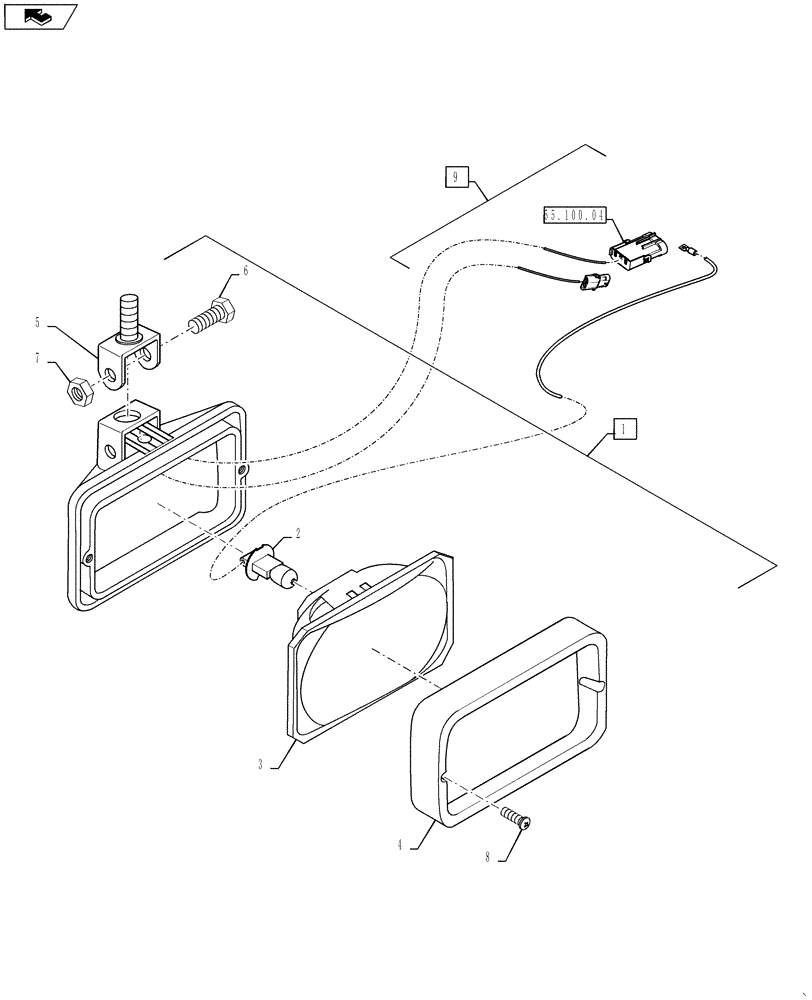

Запчасти Case IH TITAN 4030 (55.404.09) - LIGHT - ROOF-MOUNTED (55) - ELECTRICAL SYSTEMS

1

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

Flood, 80 x 30W, Halogen, Includes Ref 2 - 8

1шт.

2

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W

1шт.

3

276498A1

LENS

Tempered Glass

1шт.

4

1964806C1

BEZEL

Flood Lamp

1шт.

5

A187915

BRACKET

Lamp Mounting

1шт.

6

931418R1

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

7

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

8

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

1шт.

9

245483C1

ELEC CONNECTOR,Male, 2 Pin

Work Lamp

1шт.

9

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Work Lamp

2шт.

9

87680701

SEAL

Work Lamp

2шт.
