(55.404.04) - TAIL LIGHT ASSEMBLY

Запчасти Case IH TITAN 4030 (55.404.04) - TAIL LIGHT ASSEMBLY (55) - ELECTRICAL SYSTEMS

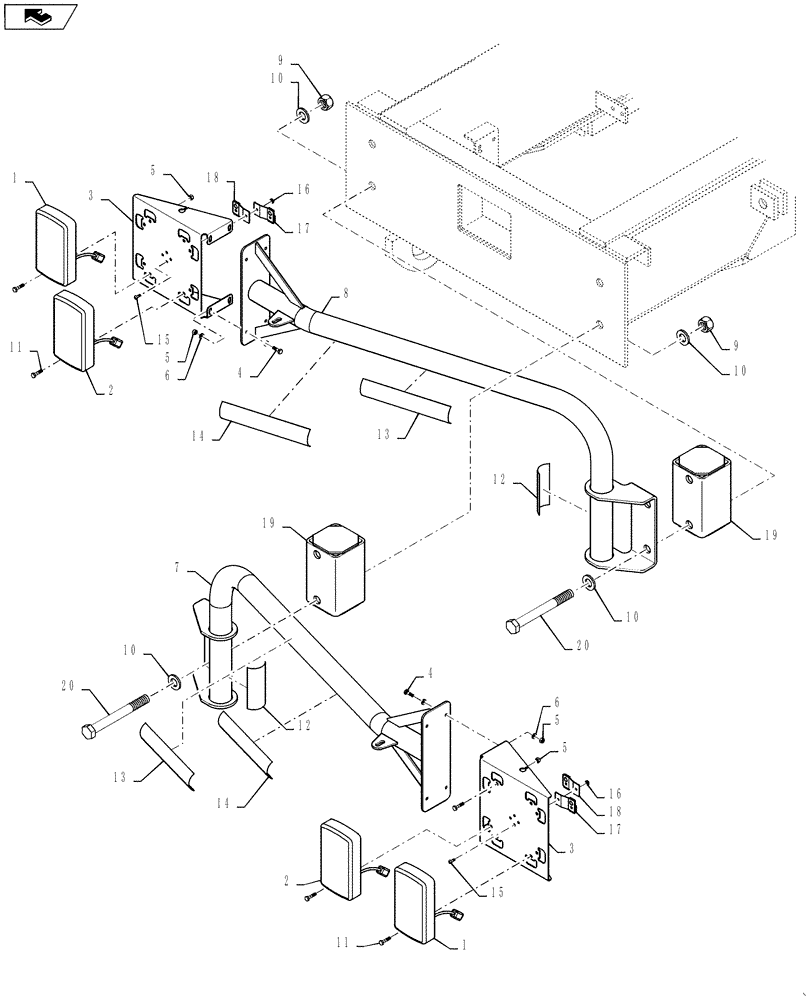

Схема запчастей Case IH TITAN 4030 - (55.404.04) - TAIL LIGHT ASSEMBLY (55) - ELECTRICAL SYSTEMS
11
2
10
8
13
7
12
18
1
3
20
13
6
16
20
9
14
6
12
16
14
3
9
17
19
15
15
10
19
10
5
1
11
5
home
18
17
4
5
5
10
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84385299

LAMP

Turn, LED Amber, 12V, 24 LED Pattern

2шт.

2

84385294

LAMP

Brake, LED Red, 12V, 24 LED Pattern

2шт.

3

87267089

MOUNTING PLATE

Tail Light, LED

2шт.

4

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

8шт.

5

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

16шт.

6

BN322545

ARM

Tail Light, Road Side

1шт.

7

BN322544

ARM

Tail Light, Curb Side

1шт.

8

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

16шт.

9

87024336

NUT,M20 x 2.5, Cl 10

4шт.

10

87529307

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm, HDN, DOR

8шт.

11

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

8шт.

12

87265949

REFLECTOR

Red

2шт.

13

311865A1

REFLECTOR

Fluorescent Orange, 9 x 2

2шт.

14

311863A1

REFLECTOR

Retroreflective Red, 9 x 2

2шт.

15

BN52348

BOLT,Phil Pan Hd, #10 - 32 x 1/2", Stainless

10-32X1/2SSPH,PHILLIP

2шт.

16

225-30210

NUT,#10-32, Stainless

2шт.

17

87267087

RETAINER

LH

2шт.

18

87267088

RETAINER

RH

2шт.

19

87269749

TUBE

Spacer

2шт.

20

87310605

BOLT,M20 x 180, 10.9, DOR

4шт.
