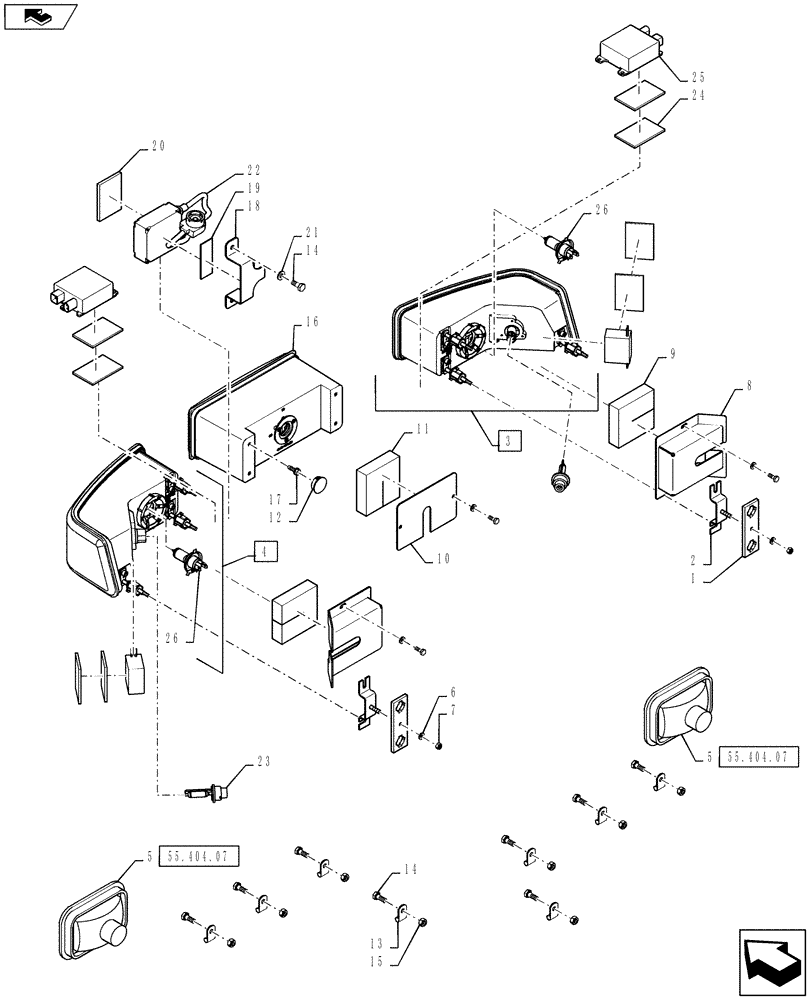

Запчасти Case IH TITAN 4030 (55.404.03) - OPTIONAL FRONT HID LIGHTS (55) - ELECTRICAL SYSTEMS

1

391666A1

SUPPORT

Light

4шт.

2

84261677

MOUNT

Headlight Assembly

4шт.

3

232448A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

RH, With RH DIP, Includes Ref 26

1шт.

4

232449A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

LH, With RH DIP, Includes Ref 26

1шт.

5

86986699

LIGHT

Park/Turn

2шт.

See Fig 55.404.07 For Service Parts

1шт.

6

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

10шт.

7

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

8

87267061

COVER ASSY

Headlight

2шт.

9

86980359

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

6шт.

10

87267209

COVER

Fieldlight Access

1шт.

11

87267208

SEAL

Headlight Seal, Foam

3шт.

12

353-426

PLUG,1" Hole, Nylon

4шт.

13

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

Holds Frame Harness In Place

8шт.

14

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

15

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

8шт.

16

232455A2

WORK LAMP,HID, 12V, 35W, Clear

Center Headlight, HID - Includes Bulb (NSS due to cost)

1шт.

17

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

4шт.

18

333645A1

CLAMP

HID Ballast Hold Down

1шт.

19

333644A1

GASKET

Foam, HID Clamp

1шт.

20

333643A1

GASKET

Foam, HID Ballast

1шт.

21

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.

22

322332A1

BALLAST

Light, Center HID

1шт.

23

47540431

BULB,HID

HID With Harness

2шт.

24

87646099

FASTENER

Dual Lock

8шт.

25

47540429

BALLAST

HID, 35W/12V D2S/D2R

2шт.

26

388872A1

BULB

H4 Halogen, 65W/55W

2шт.
