Запчасти Case IH TITAN 4030 (55.404.01) - STANDARD FRONT LIGHTS (55) - ELECTRICAL SYSTEMS

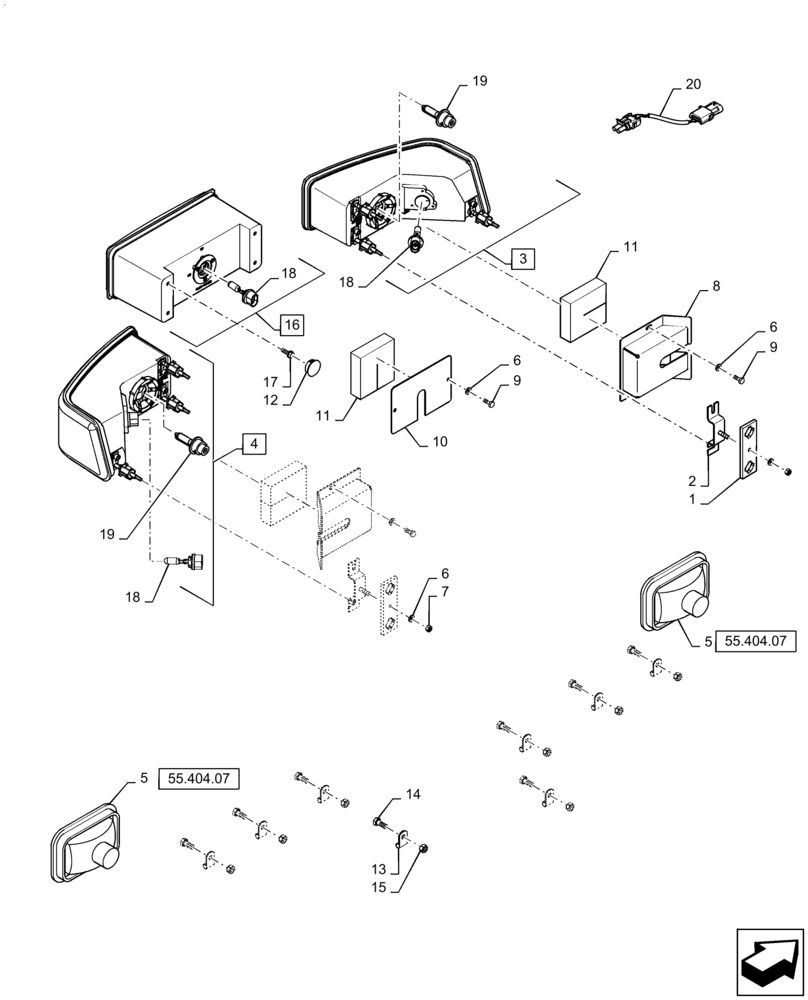

Схема запчастей Case IH TITAN 4030 - (55.404.01) - STANDARD FRONT LIGHTS (55) - ELECTRICAL SYSTEMS
19
55.404.07
3
6
9
6
12
13
5
18
5
14
55.404.07
9
11
8
7
16
1
17
19
18
11
20
10
4
18
6
15
2

Артикул

Название

Примечание

Количество

1

391666A1

SUPPORT

Light

4шт.

2

84261677

MOUNT

Headlight Assembly

4шт.

3

232448A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

RH, With RH DIP, Includes Ref 18 and 19

1шт.

4

232449A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

LH, With RH DIP, Includes Ref 18 and 19

1шт.

5

86986699

LIGHT

Park/Turn

2шт.

See Fig 55.404.07 For Service Parts

1шт.

6

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

10шт.

7

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

8

87267061

COVER ASSY

Headlight

2шт.

9

86980359

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

6шт.

10

87267209

COVER

Fieldlight Access

1шт.

11

87267208

SEAL

Headlight Seal, Foam

3шт.

12

353-426

PLUG,1" Hole, Nylon

4шт.

13

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

Holds Frame Harness In Place

8шт.

14

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

15

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

8шт.

16

232454A2

WORK LAMP,Halogen, 12V, 60W, Clear

Center, Halogen, Includes Ref 18

1шт.

17

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

4шт.

18

323093A1

BULB

885-12V, Halogen, Work Lamp

3шт.

19

388872A1

BULB

H4 Halogen, 65W/55W

2шт.

20

87265150

WIRE HARNESS

Adapter, Balast to Halogen

1шт.

Выбрано товаров: 21
