Запчасти Case IH TITAN 4030 (55.302.02) - BATTERY CABLES (55) - ELECTRICAL SYSTEMS

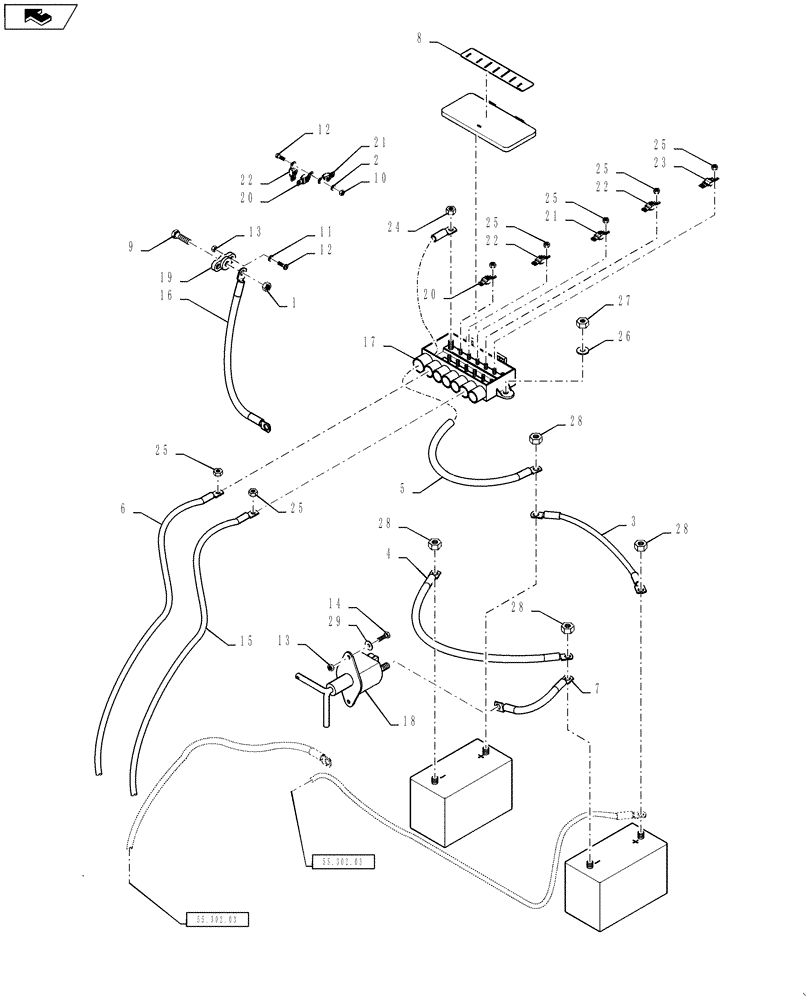

Схема запчастей Case IH TITAN 4030 - (55.302.02) - BATTERY CABLES (55) - ELECTRICAL SYSTEMS
17
10
21
28
13
20
9
19
26
13
21
29
12
3
home
15
25
28
7
18
28
24
55.302.03
25
23
11
8
25
6
2
20
25
25
25
1
12
27
22
5
28
55.302.03
14
22
16
22
4

Артикул

Название

Примечание

Количество

1

9628503

NUT,3/8"-16, G5

1шт.

2

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

3

84423367

POS BATTERY CABLE

50, M8 Terminal, M8 Terminal, 385mm Long

1шт.

4

84423357

NEG BATTERY CABLE

50, M8 Terminal, M8 Terminal, 500mm Long

1шт.

5

84423371

POS BATTERY CABLE

62, M8 Terminal, M8 Terminal, 435mm Long

1шт.

6

84423395

POS BATTERY CABLE

32, M6 Terminal, M13 Terminal, 2520mm Long

1шт.

7

84423425

NEG BATTERY CABLE

62, M8 Terminal, M8 Terminal, 235mm Long

1шт.

8

84371137

DECAL

Power Distribution, Fuse

1шт.

9

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

1шт.

10

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

3шт.

11

87529301

WASHER,5.6mm ID x 10mm OD x 1mm Thk

5.6 x 10 x 1 mm CST DOR

2шт.

12

87343600

SCREW,Phil Pan Hd, M5 x 16mm, Cl 4.8, Full Thd

2шт.

13

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

14

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

15

84425622

POS BATTERY CABLE

13, M5 Terminal, M6 Terminal, 2385mm Long

1шт.

16

84423426

NEG BATTERY CABLE

62, M8 Terminal, M10 Terminal, 320mm Long

1шт.

17

84596403

MODULE

Power Distribution Box

1шт.

18

84004375

BATTERY CUT-OUT

Battery Disconnect

1шт.

19

20-1451T1

BLOCK

Junction

1шт.

20

84330274

FUSE,125A

125A

2шт.

21

84078783

FUSE,80A, Midival

80A

2шт.

22

84174070

FUSE,30A, Orange

30A

3шт.

23

87548130

FUSE,60A, Midival

60A

1шт.

24

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

25

86507064

FLANGE NUT,M5 x 0.8

M5, Flange

10шт.

26

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.

27

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

28

BN50062

LOCK NUT,3/8"-16, Stainless Steel

4шт.

29

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

2шт.

Выбрано товаров: 29
