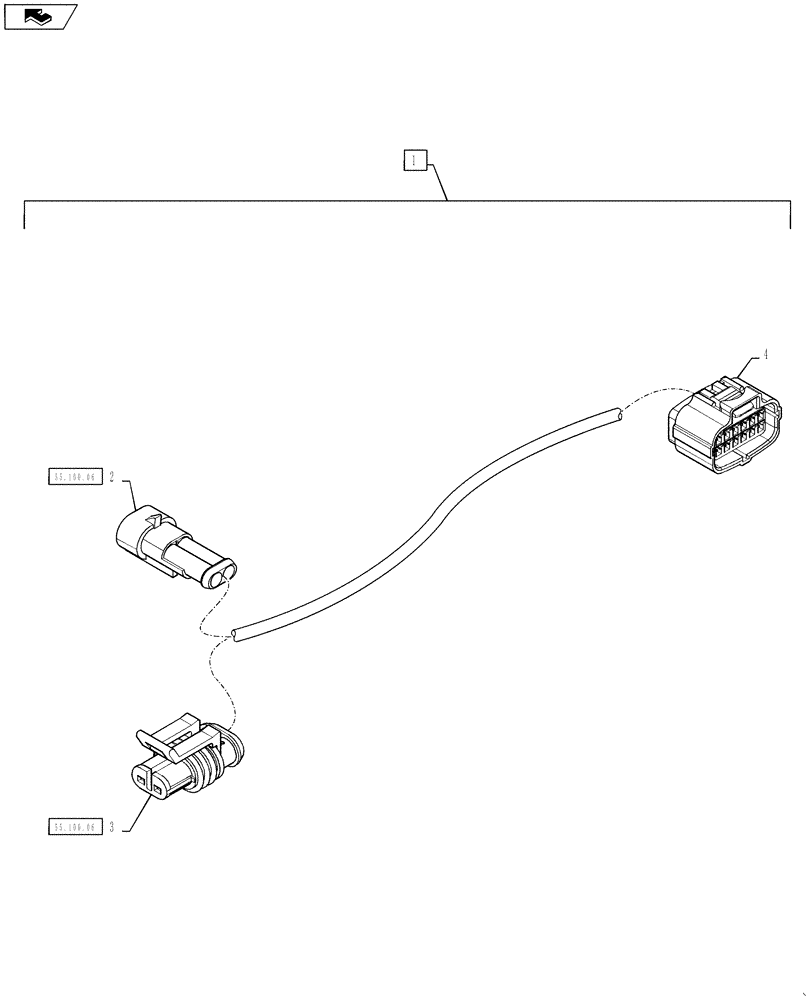

Запчасти Case IH TITAN 4030 (55.100.34) - EVGT HARNESS ADAPTOR (55) - ELECTRICAL SYSTEMS

1

84558996

WIRE HARNESS

Harness Adaptor Complete, Includes Ref 2 - 4

1шт.

2

87687244

ELEC CONNECTOR

EVGT Power, Ground, C002/X-821M

1шт.

2

87680675

TERMINAL

EVGT Power, Ground, C002/X-821M

2шт.

2

87406998

SEAL

EVGT Power, Ground, C002/X-821M

2шт.

3

82012083

WIRE CONNECTOR,Female

EVGT Can, C003/X-820F

1шт.

3

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

EVGT Can, C003/X-820F

2шт.

3

87406998

SEAL

EVGT Can, C003/X-820F

2шт.

4

87694583

ELEC CONNECTOR

EVGT, C001

1шт.

4

82862753

TERMINAL

EVGT, C001

4шт.

4

84161112

SEAL

EVGT, C001

1шт.

4

82863647

PLUG

EVGT, C001

8шт.
