Запчасти Case IH TITAN 4030 (55.100.32) - AUTOGUIDANCE FRAME HARNESS (55) - ELECTRICAL SYSTEMS

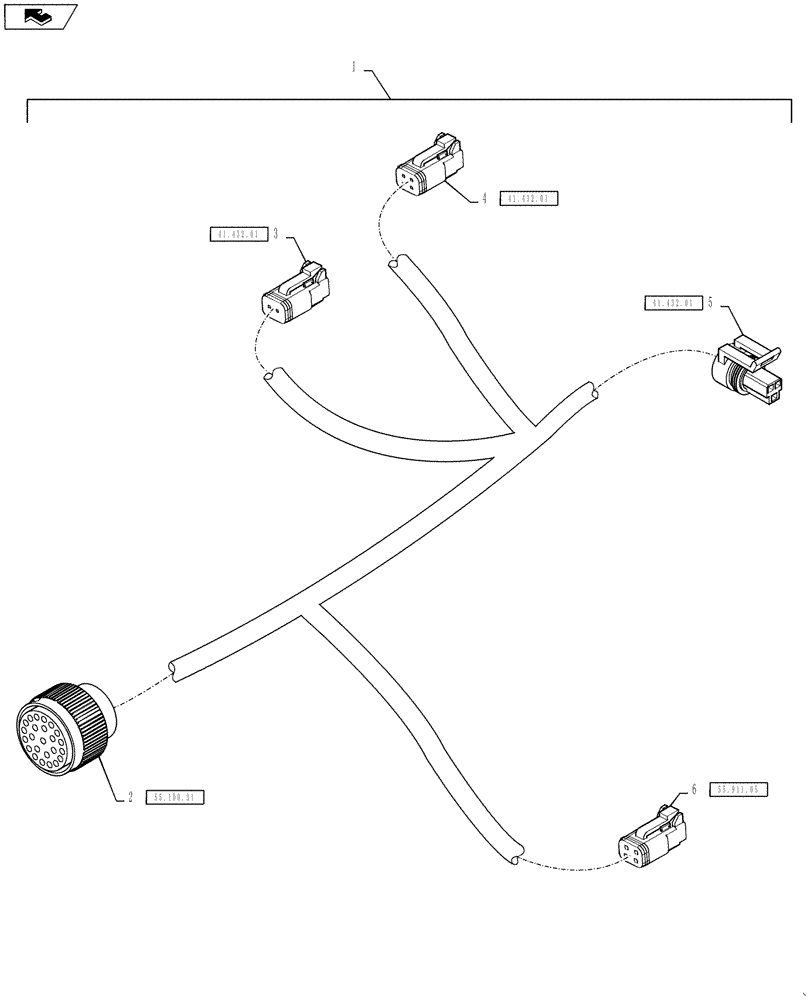

Схема запчастей Case IH TITAN 4030 - (55.100.32) - AUTOGUIDANCE FRAME HARNESS (55) - ELECTRICAL SYSTEMS
1
41.432.01
4
home
55.100.31
41.432.01
41.432.01
3
2
6
55.911.05
5

Артикул

Название

Примечание

Количество

1

84572476

HARNESS

Autoguidance, Frame

1шт.

2

381150A1

CONNECTOR, ELEC

CONNECTOR Cab Bulkhead Interface, XB-07F

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cab Bulkhead Interface, XB-07F

13шт.

2

84068583

PLUG,12 - 16 Ga, White

Cab Bulkhead Interface, XB-07F

10шт.

3

87695582

ELEC CONNECTOR,Female, 2 Pole

Autoguidance Override Valve, X-713F

1шт.

3

87695649

ELEC CONNECTOR,Locking, Green

Autoguidance Override Valve, X-713F

1шт.

3

87695652

PLUG,12 - 16 Ga, White

Autoguidance Override Valve, X-713F

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Autoguidance Override Valve, X-713F

2шт.

4

87694153

CONTACT HOUSING,Female, 4 Cavities

Auto Steer Valve, X-714F

1шт.

4

87694146

ELEC CONNECTOR,Locking, Green

Auto Steer Valve, X-714F

1шт.

4

87695652

PLUG,12 - 16 Ga, White

Auto Steer Valve, X-714F

2шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Auto Steer Valve, X-714F

2шт.

5

87692837

WIRE CONNECTOR,Female, 3 Pole

Pressure Switch, X-715F

1шт.

5

87689636

PLUG,Red, Taxi Seal Connector Cavity

Pressure Switch, X-715F

1шт.

5

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Pressure Switch, X-715F

2шт.

6

277904A1

ELEC CONNECTOR,Female, 4 Pin

Steering Angle Sensor, X-716F

1шт.

6

279794A1

STOP LOCK,Locking, Orange

Steering Angle Sensor, X-716F

1шт.

6

87698572

PLUG,20 Ga, Red

Steering Angle Sensor, X-716F

1шт.

6

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Steering Angle Sensor, X-716F

3шт.

Выбрано товаров: 19
