(55.100.28) - AUXILIARY POWER HARNESS

Запчасти Case IH TITAN 4030 (55.100.28) - AUXILIARY POWER HARNESS (55) - ELECTRICAL SYSTEMS

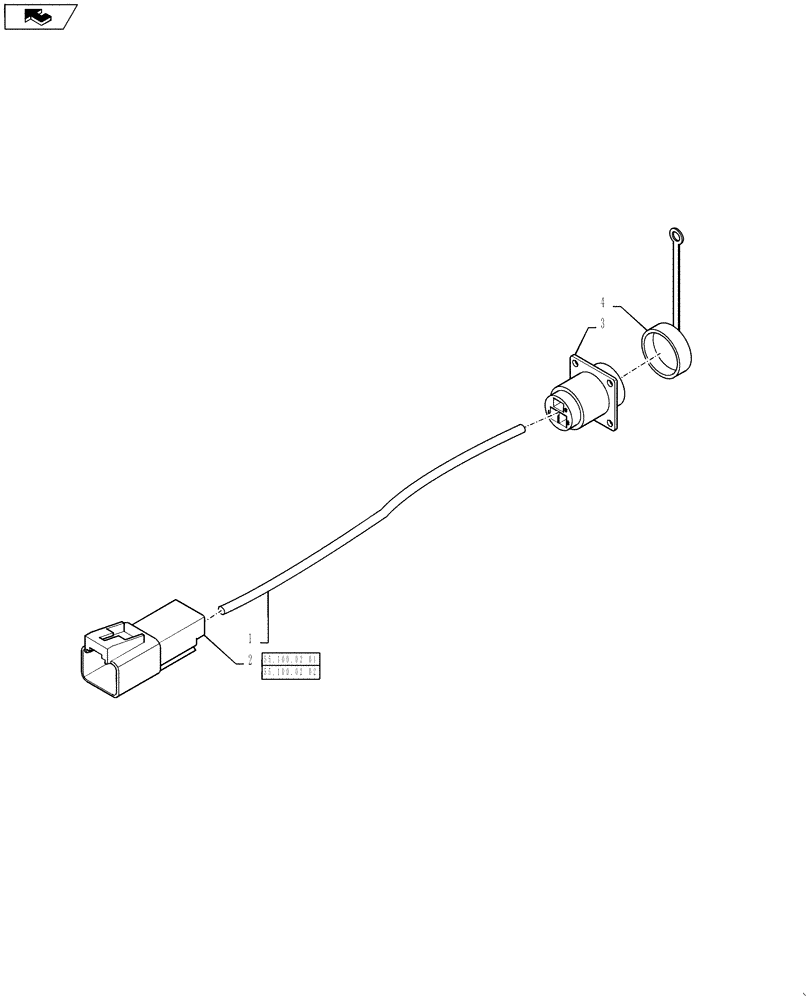

Схема запчастей Case IH TITAN 4030 - (55.100.28) - AUXILIARY POWER HARNESS (55) - ELECTRICAL SYSTEMS
2
4
home
55.100.02 01
55.100.02 02
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

227739A2

POWER SOCKET

Harness, Auxiliary Power, Inc. 2 - 4

1шт.

2

227729A1

CONNECTOR, ELEC

CONNECTOR To Main Cab Harness

1шт.

2

227731A1

CONNECTOR, ELEC

CONNECTOR Secondary Lock

1шт.

3

225164C1

ELEC CONNECTOR

Implement Aux Power

1шт.

4

225162C1

PLUG

Dust Cap

1шт.
