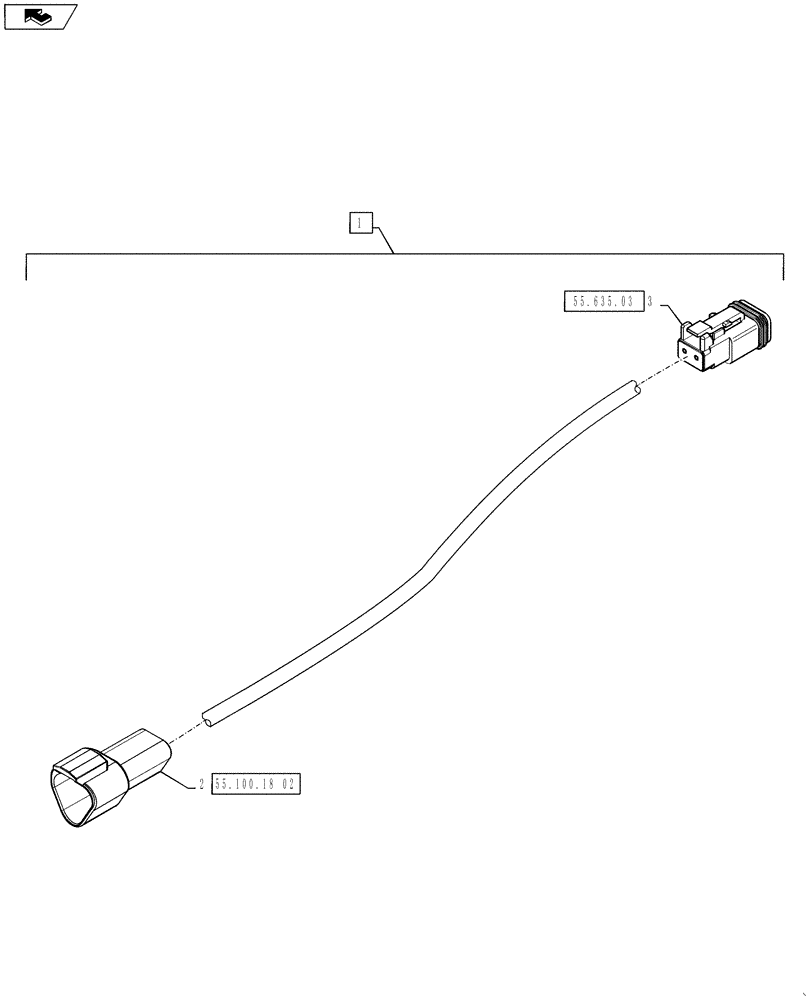

Запчасти Case IH TITAN 4030 (55.100.24) - PUMP PRESSURE DETECT HARNESS, 610 LIQUID APPLICATOR (55) - ELECTRICAL SYSTEMS

1

84485890

WIRE HARNESS

Pump Detect, 610 Liquid Applicator, Includes Ref 2 - 3

1шт.

2

87695723

ELEC CONNECTOR,Male , 3 Pole

Main Frame Harness Interface, X-832M2

1шт.

2

87695625

WIRE CONNECTOR,Locking, Green

Main Frame Harness Interface, X-832M2

1шт.

2

381417A1

TERMINAL,Male, Nickel, 0.50 - 1.00mm

Main Frame Harness Interface, X-832M2

2шт.

2

84068583

PLUG,12 - 16 Ga, White

Main Frame Harness Interface, X-832M2

1шт.

3

87695582

ELEC CONNECTOR,Female, 2 Pole

Pressure Sensor, X-001F1

1шт.

3

84074638

LOCKING TAB,Locking Wedge, Green

Pressure Sensor, X-001F1

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Pressure Sensor, X-001F1

2шт.
