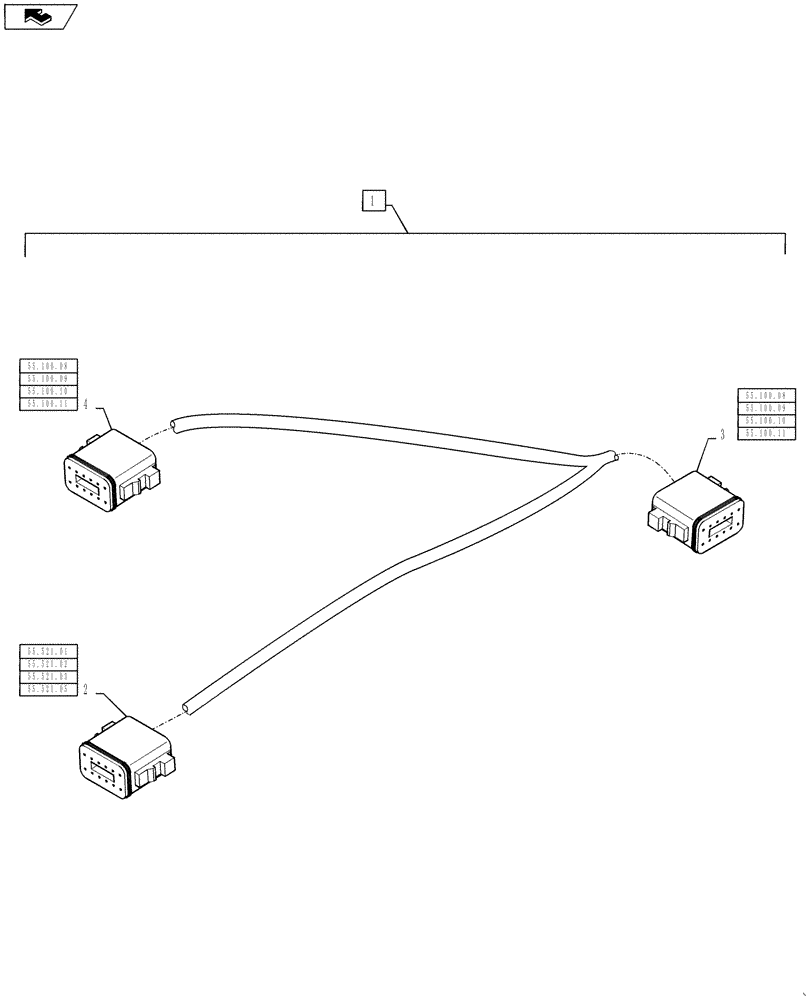

Запчасти Case IH TITAN 4030 (55.100.20) - TRANSMISSION SHIFTER HARNESS ADAPTER (55) - ELECTRICAL SYSTEMS

1

87270254

WIRE HARNESS

Adapter, No Auxiliary Transmission, Includes Ref 2 - 4

1шт.

2

225389C1

CONNECTOR, ELEC

CONNECTOR P126, Transmission Range Selection Switch

1шт.

2

87695651

LOCKING TAB,Wedge Lock

P126, Transmission Range Selection Switch

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

P126, Transmission Range Selection Switch

10шт.

3

225388C1

ELEC CONNECTOR,Male, 12 Pin

J126/X-126M, Right Hand Console Harness

1шт.

3

87698541

LOCKING TAB,Wedge Lock, 12-Pin

J126/X-126M, Right Hand Console Harness

1шт.

3

381417A1

TERMINAL,Male, Nickel, 0.50 - 1.00mm

J126/X-126M, Right Hand Console Harness

10шт.

4

225388C1

ELEC CONNECTOR,Male, 12 Pin

J127/X-127M, Right Hand Console Harness

1шт.

4

87698541

LOCKING TAB,Wedge Lock, 12-Pin

J127/X-127M, Right Hand Console Harness

1шт.

4

381417A1

TERMINAL,Male, Nickel, 0.50 - 1.00mm

J127/X-127M, Right Hand Console Harness

10шт.
