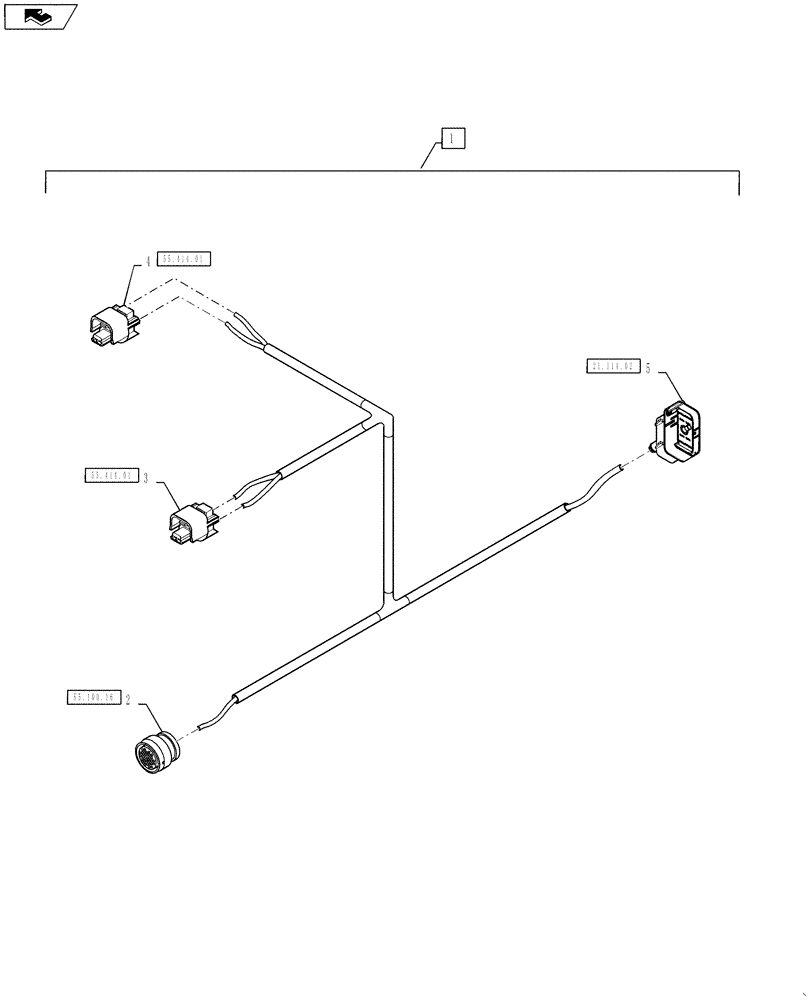

Запчасти Case IH TITAN 4030 (55.100.19) - TRANSMISSION HARNESS, EXTERIOR (55) - ELECTRICAL SYSTEMS

1

84299319

WIRE HARNESS

Transmission, Includes Ref 2 - 5

1шт.

2

380840A1

TERMINAL CONNECTOR,Female, 31 Cavities

Transmission Cab Harness Interface, XB-3F

1шт.

2

84068583

PLUG,12 - 16 Ga, White

Transmission Cab Harness Interface, XB-3F

8шт.

2

87695915

ELEC. TERMINAL PIN,Male, Nickel, 1 - 2 mm

Transmission Cab Harness Interface, XB-3F

23шт.

3

87271725

ELEC CONNECTOR,Male, 2 Cavities

Output Speed Sensor, X-908F

1шт.

3

87271726

WEDGE,Locking

Output Speed Sensor, X-908F

1шт.

3

87271729

WEDGE,Locking

Output Speed Sensor, X-908F

1шт.

3

87271727

TERMINAL,Female, Tin, 0.75 - 0.80mm

Output Speed Sensor, X-908F

2шт.

3

87271728

SEAL,1.70 - 2.10mm, Yellow

Output Speed Sensor, X-908F

2шт.

4

87271725

ELEC CONNECTOR,Male, 2 Cavities

Engine Speed Sensor, X-911F

1шт.

4

87271726

WEDGE,Locking

Engine Speed Sensor, X-911F

1шт.

4

87271729

WEDGE,Locking

Engine Speed Sensor, X-911F

1шт.

4

87271727

TERMINAL,Female, Tin, 0.75 - 0.80mm

Engine Speed Sensor, X-911F

2шт.

4

87271728

SEAL,1.70 - 2.10mm, Yellow

Engine Speed Sensor, X-911F

2шт.

5

87271431

ELEC CONNECTOR,Female, 20 Cavities

Transmission, X-915F

1шт.

5

87271905

GROMMET

Transmission, X-915F

1шт.

5

87271906

ELEC CONNECTOR

Transmission, X-915F

2шт.

5

87271907

CAP

Transmission, X-915F

1шт.

5

87668921

PLUG,Black

Transmission, X-915F

1шт.

5

87271902

TERMINAL,Female, Gold, 0.50 - 1.00mm

Transmission, X-915F

19шт.
