Запчасти Case IH TITAN 4030 (55.100.17) - MAIN FRAME HARNESS LAYOUT (55) - ELECTRICAL SYSTEMS

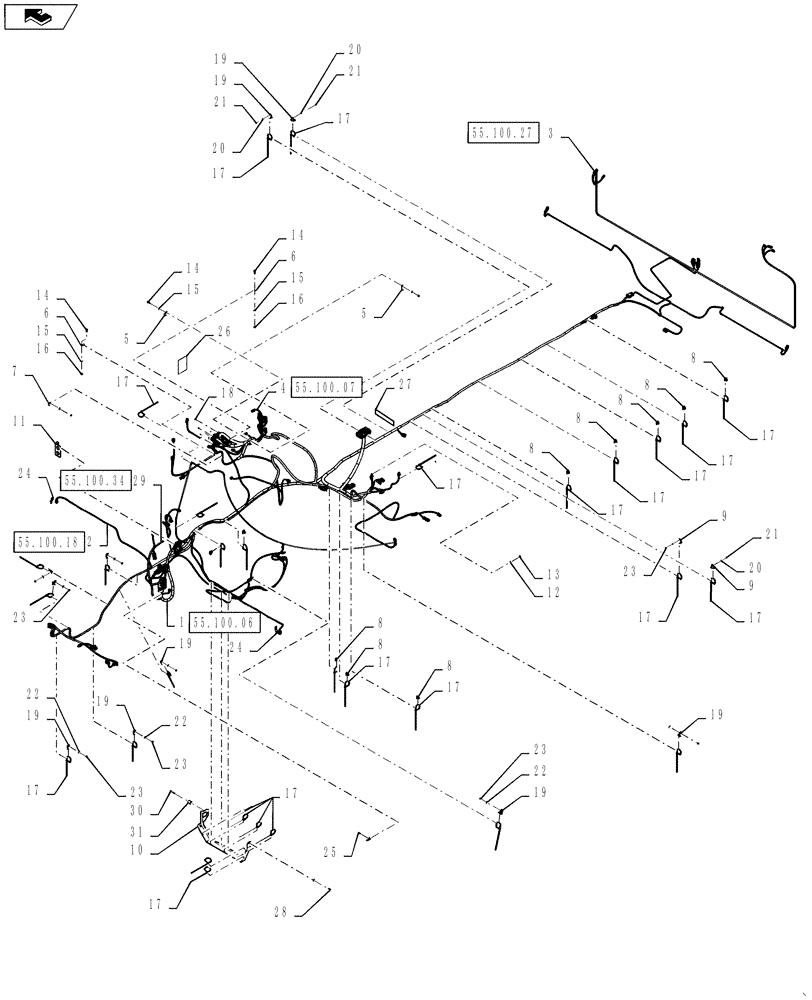

Схема запчастей Case IH TITAN 4030 - (55.100.17) - MAIN FRAME HARNESS LAYOUT (55) - ELECTRICAL SYSTEMS
17
3
17
55.100.34
23
30
5
23
17
17
11
19
17
17
8
19
19
10
17
17
19
17
21
26
16
14
15
31
2
55.100.27
25
22
21
55.100.07
18
19
16
8
19
28
8
20
9
home
8
55.100.18
15
13
20
6
5
9
17
29
24
15
7
23
17
27
14
22
12
23
17
17
14
24
19
8
4
17
17
8
8
21
17
6
23
1
20
8
55.100.06
22

Артикул

Название

Примечание

Количество

1

84518434

WIRE HARNESS

Engine Harness

1шт.

See Fig 55.100.06 For Service Parts

1шт.

2

84428838

HARNESS

Main Frame, 4 Wheeler

1шт.

See Fig 55.100.18 For Service Parts

1шт.

3

84428831

HARNESS

Tail light

1шт.

See Fig 55.100.27 For Service Parts

1шт.

4

84565373

WIRE HARNESS

Denox Engine

1шт.

See Fig 55.100.07 For Service Parts

1шт.

5

86637979

CLAMP,20.6mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

6

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

6шт.

7

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

8

84340333

BASE PLATE

Tie

10шт.

9

84360210

BASE

Tie

4шт.

10

84562862

GUARD

Wiring Harness

1шт.

11

84428316

MOUNT

Electric Bulkhead

1шт.

12

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

13

87344209

NUT,M10 x 1.5, Cl 10, DOR

1шт.

14

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

15

86981495

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

10.5 X 18 X 1.6 MM CST DOR

4шт.

16

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

17

BN570007

STRAP

Black, 14-1/2" Long

33шт.

18

87343600

SCREW,Phil Pan Hd, M5 x 16mm, Cl 4.8, Full Thd

4шт.

19

84407295

BASE

M8, Stud

8шт.

20

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

4шт.

21

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

22

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

11шт.

23

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

10шт.

24

84475841

MOUNT

Connector

2шт.

25

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

26

84480723

DECAL

Denox Harness Fuse and Relay

1шт.

27

84318554

DECAL

Bulkhead Layout

1шт.

28

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

29

84558996

WIRE HARNESS

EVGT Adaptor Harness

1шт.

See Fig 55.100.34 For Service Parts

1шт.

30

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

31

84603751

SPACER

Braided Line

1шт.
