Запчасти Case IH TITAN 4030 (55.100.13) - LH CAB COMPARTMENT HARNESS, SCS5000, 810 FLEX AIR (55) - ELECTRICAL SYSTEMS

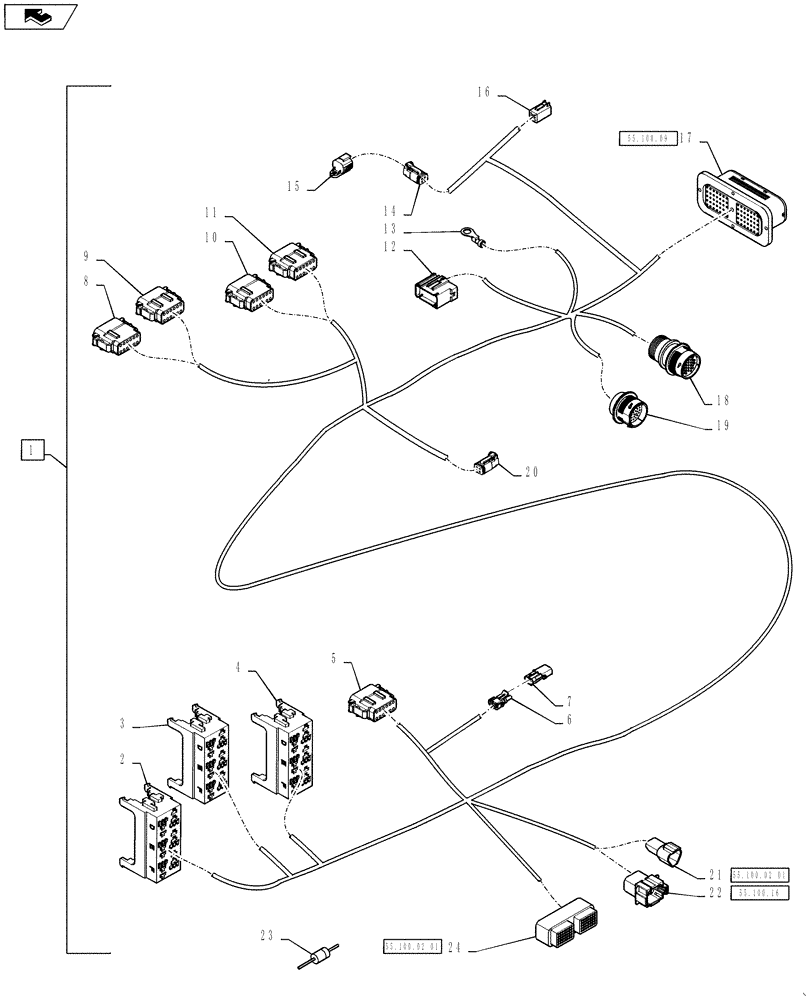

Схема запчастей Case IH TITAN 4030 - (55.100.13) - LH CAB COMPARTMENT HARNESS, SCS5000, 810 FLEX AIR (55) - ELECTRICAL SYSTEMS
24
14
15
19
16
1
2
6
55.100.09
55.100.02 01
55.100.02 01
55.100.16
9
22
10
20
8
18
home
12
3
7
13
21
4
17
11
23
5

Артикул

Название

Примечание

Количество

1

84533045

WIRE HARNESS

LH Compartment, Used With SCS5000 Controller Option, 810, Includes Ref 2 - 24

1шт.

2

87705041

MULTIPOLE CONNECTOR,Female, 30 Pole

Relay Panel 6, RP6S

1шт.

2

87704921

LOCK

Relay Panel 6, RP6S

1шт.

2

182135A1

TERMINAL CONNECTOR

Relay Panel 6, RP6S

6шт.

2

182136A1

TERMINAL CONNECTOR

Relay Panel 6, RP6S

8шт.

2

182128A1

CONNECTOR, ELEC

CONNECTOR Relay Panel 6, RP6S

5шт.

2

86509590

RELAY

Relay Panel 6, RP6S

5шт.

3

87705041

MULTIPOLE CONNECTOR,Female, 30 Pole

Relay Panel 5, RP5S

1шт.

3

87704921

LOCK

Relay Panel 5, RP5S

1шт.

3

182135A1

TERMINAL CONNECTOR

Relay Panel 5, RP5S

8шт.

3

182136A1

TERMINAL CONNECTOR

Relay Panel 5, RP5S

6шт.

3

87704599

TERMINAL CONNECTOR,Tin, 2.00 - 3.00mm

Relay Panel 5, RP5S

6шт.

3

182128A1

CONNECTOR, ELEC

CONNECTOR Relay Panel 5, RP5S

5шт.

3

86509590

RELAY

Relay Panel 5, RP5S

6шт.

4

87705041

MULTIPOLE CONNECTOR,Female, 30 Pole

Relay Panel 4, RP4S

1шт.

4

87704921

LOCK

Relay Panel 4, RP4S

1шт.

4

182135A1

TERMINAL CONNECTOR

Relay Panel 4, RP4S

7шт.

4

182136A1

TERMINAL CONNECTOR

Relay Panel 4, RP4S

6шт.

4

87704599

TERMINAL CONNECTOR,Tin, 2.00 - 3.00mm

Relay Panel 4, RP4S

3шт.

4

182128A1

CONNECTOR, ELEC

CONNECTOR Relay Panel 4, RP4S

6шт.

4

86509590

RELAY

Relay Panel 4, RP4S

6шт.

5

87700156

CONTACT HOUSING,Female, 12 Pole

Foam Marker Node, X-204F3

1шт.

5

87705198

WEDGE

Foam Marker Node, X-204F3

1шт.

5

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Foam Marker Node, X-204F3

9шт.

6

87692855

CONTACT HOUSING,Male, 2 Cavities

Foam Advance, X-202F3

1шт.

6

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

Foam Advance, X-202F3

2шт.

6

87680701

SEAL

Foam Advance, X-202F3

2шт.

7

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Foam Advance Jumper, X-202M3

1шт.

7

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Foam Advance Jumper, X-202M3

2шт.

7

87680701

SEAL

Foam Advance Jumper, X-202M3

2шт.

8

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

Product Control Node, X-053F3

1шт.

8

87705198

WEDGE

Product Control Node, X-053F3

1шт.

8

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Product Control Node, X-053F3

5шт.

9

87700156

CONTACT HOUSING,Female, 12 Pole

Product Control Node, X-052F3

1шт.

9

87705198

WEDGE

Product Control Node, X-052F3

1шт.

9

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Product Control Node, X-052F3

7шт.

9

223953A1

SOCKET/RECEPTACLE

Product Control Node, X-052F3

2шт.

9

225039C1

TERMINAL

Product Control Node, X-052F3

3шт.

10

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

Speed Node, X-251F3

1шт.

10

87705198

WEDGE

Speed Node, X-251F3

1шт.

10

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Speed Node, X-251F3

3шт.

10

223953A1

SOCKET/RECEPTACLE

Speed Node, X-251F3

2шт.

11

87700156

CONTACT HOUSING,Female, 12 Pole

Speed Node, X-249F3

1шт.

11

87705198

WEDGE

Speed Node, X-249F3

1шт.

11

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Speed Node, X-249F3

5шт.

12

84149207

ELEC CONNECTOR

Clean Ground, SP-061F3

1шт.

12

87693733

RETAINER

Clean Ground, SP-061F3

1шт.

12

87352750

CAP

Clean Ground, SP-061F3

1шт.

12

87693249

ELEC. TERMINAL PIN

Clean Ground, SP-061F3

8шт.

12

87693727

ELEC. TERMINAL PIN,Tin, 0.75 - 1.00mm

Clean Ground, SP-061F3

2шт.

13

84140737

TERMINAL CONNECTOR

Chassis Ground, G1-CM3

1шт.

14

84074640

LOCKING TAB,Wedge Lock

Product Can, X-211F3

1шт.

14

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Product Can, X-211F3

4шт.

15

84391166

WIRE CONNECTOR,Male, 4 Pins

Cap For Product Can, X-211M3

1шт.

16

76074075

ELEC CONNECTOR

Power Ground Port, X-200F3

1шт.

16

87694149

ELEC CONNECTOR

Wedge, Power Ground Port, X-200F3

1шт.

16

87692882

ELEC. TERMINAL PIN

Power Ground Port, X-200F3

3шт.

16

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Power Ground Port, X-200F3

1шт.

17

87707114

CONTACT HOUSING,Male, 70 Pole

RH Console Interface, X-128M3

1шт.

17

225241C1

SOCKET

RH Console Interface, X-128M3

55шт.

17

225366C1

ELEC. TERMINAL PIN,Male, Gold, 0.75 - 2.00mm

RH Console Interface, X-128M3

2шт.

18

87696777

ELEC CONNECTOR

Hydraulic Harness Bulkhead, XB-4M3

1шт.

18

87271930

NUT

Hydraulic Harness Bulkhead, XB-4M3

1шт.

18

87695915

ELEC. TERMINAL PIN,Male, Nickel, 1 - 2 mm

Hydraulic Harness Bulkhead, XB-4M3

19шт.

19

87700815

MULTIPOLE CONNECTOR,Male, 35 Pole

Product Control Harness Bulkhead, XB-5M3

1шт.

19

87271930

NUT

Product Control Harness Bulkhead, XB-5M3

1шт.

19

87695915

ELEC. TERMINAL PIN,Male, Nickel, 1 - 2 mm

Product Control Harness Bulkhead, XB-5M3

20шт.

19

381417A1

TERMINAL,Male, Nickel, 0.50 - 1.00mm

Product Control Harness Bulkhead, XB-5M3

1шт.

19

223951A1

PIN

Product Control Harness Bulkhead, XB-5M3

2шт.

19

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

Product Control Harness Bulkhead, XB-5M3

1шт.

19

87696141

TERMINAL

Product Control Harness Bulkhead, XB-5M3

1шт.

20

87694153

CONTACT HOUSING,Female, 4 Cavities

Auger Interface Control, X-152F3

1шт.

20

87694146

ELEC CONNECTOR,Locking, Green

Auger Interface Control, X-152F3

1шт.

20

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Auger Interface Control, X-152F3

3шт.

20

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Auger Interface Control, X-152F3

1шт.

21

87695723

ELEC CONNECTOR,Male , 3 Pole

Transmission Interface, X-090M3

1шт.

21

87695625

WIRE CONNECTOR,Locking, Green

Transmission Interface, X-090M3

1шт.

21

225365C1

SOCKET

Transmission Interface, X-090M3

2шт.

22

225320C1

ELEC CONNECTOR

Transmission Interface, X-903M3

1шт.

22

225322C1

WEDGE

Transmission Interface, X-903M3

1шт.

22

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Transmission Interface, X-903M3

8шт.

23

BN16174

DIODE,600V, 3A

3A, 600V, X-1CM3

1шт.

24

87707115

CONTACT HOUSING,Female, 70 Pole

Cab Harness Interface, X-080F3

1шт.

24

87695915

ELEC. TERMINAL PIN,Male, Nickel, 1 - 2 mm

Cab Harness Interface, X-080F3

29шт.

24

225365C1

SOCKET

Cab Harness Interface, X-080F3

4шт.

24

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cab Harness Interface, X-080F3

1шт.

25

86511817

SCREW,Pan, M3 x 0.5 x 20mm, Cl 4.8

M3 x 20, PHD, 4.8, ZND, Not Shown, Used To Mount Harness To RH Console Harness

3шт.

26

86509827

LOCK WASHER,M3

Not Shown, Used To Mount Harness To RH Console Harness

3шт.

27

86508812

NUT,M3, Cl 8

Not Shown, Used To Mount Harness To RH Console Harness

3шт.

Выбрано товаров: 89
