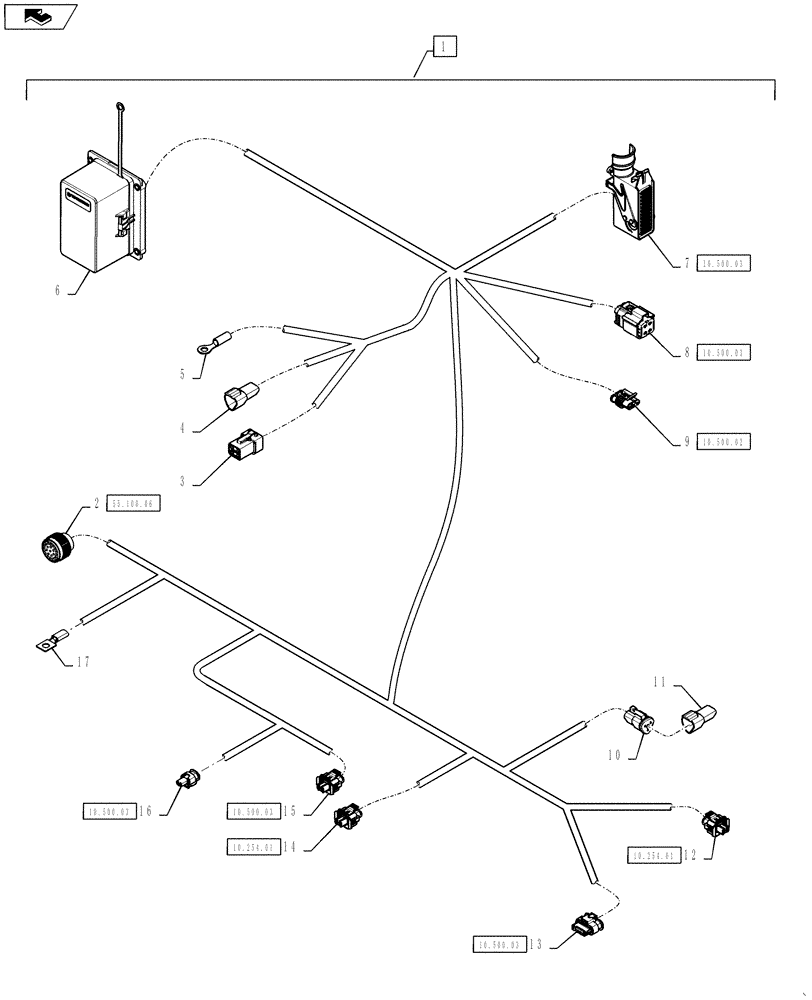

Запчасти Case IH TITAN 4030 (55.100.07) - DENOX ENGINE HARNESS (55) - ELECTRICAL SYSTEMS

1

84565373

WIRE HARNESS

Engine, Denox, Includes Ref 2 - 17

1шт.

2

84178654

ELEC CONNECTOR

Engine Harness Interface, X-802M1

1шт.

2

84068583

PLUG,12 - 16 Ga, White

Engine Harness Interface, X-802M1

6шт.

2

87695915

ELEC. TERMINAL PIN,Male, Nickel, 1 - 2 mm

Engine Harness Interface, X-802M1

2шт.

2

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

Engine Harness Interface, X-802M1

6шт.

3

87448363

WIRE CONNECTOR,Female

Power Interface, X-506F1

1шт.

3

87707796

ELEC CONNECTOR

Power Interface, X-506F1

1шт.

3

87695923

TERMINAL

Power Interface, X-506F1

4шт.

4

87695723

ELEC CONNECTOR,Male , 3 Pole

Product Harness Interface, X-505M1

1шт.

4

381417A1

TERMINAL,Male, Nickel, 0.50 - 1.00mm

Product Harness Interface, X-505M1

1шт.

4

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Product Harness Interface, X-505M1

2шт.

5

225065C1

ELEC CONNECTOR,3.00 - 5.00mm

CONNECTOR Chassis Ground, G1-DX

1шт.

6

87312843

FUSE BOX

Denox External Fuse/Relay Box, X-810F1

1шт.

6

87655334

RELAY,12V, 35A, Micro

Denox External Fuse/Relay Box, X-810F1

4шт.

6

121414A1

FUSE,20A, Mini, Yellow

Denox External Fuse/Relay Box, X-810F1

3шт.

6

121412A1

FUSE,10A, Mini, Red

Denox External Fuse/Relay Box, X-810F1

1шт.

6

87312626

RELAY,24V

Denox External Fuse/Relay Box, X-810F1

1шт.

6

121416A1

FUSE,30A, Mini, Green

Denox External Fuse/Relay Box, X-810F1

1шт.

6

87686742

PLUG

Denox External Fuse/Relay Box, X-810F1

11шт.

6

87693249

ELEC. TERMINAL PIN

Denox External Fuse/Relay Box, X-810F1

7шт.

6

292550A1

SEAL

Denox External Fuse/Relay Box, X-810F1

7шт.

6

87704966

TERMINAL

Denox External Fuse/Relay Box, X-810F1

10шт.

6

87680701

SEAL

Denox External Fuse/Relay Box, X-810F1

10шт.

6

84392736

TERMINAL CONNECTOR

Denox External Fuse/Relay Box, X-810F1

22шт.

6

87698530

SEAL

Denox External Fuse/Relay Box, X-810F1

22шт.

7

87713291

WIRE CONNECTOR

DCU, X-823F1

1шт.

7

87713301

CAP

DCU, X-823F1

1шт.

7

87713302

SCREW,Phillips Drive, Round HD, M3 x 12mm

DCU, X-823F1

1шт.

7

82035902

PLUG

DCU, X-823F1

12шт.

7

12309290

CABLE TERMINAL

DCU, X-823F1

16шт.

7

87691478

SEAL

DCU, X-823F1

16шт.

7

87679949

TERMINAL CONNECTOR

DCU, X-823F1

4шт.

8

84262038

WIRE CONNECTOR

Converter +24V, X-824F1

1шт.

8

84257517

TERMINAL CONNECTOR,3.00 - 5.00mm

Converter +24V, X-824F1

4шт.

9

84062580

CONNECTOR, ELEC

CONNECTOR DEF Tank Sensor, X-803F1

1шт.

9

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

DEF Tank Sensor, X-803F1

3шт.

10

87695580

ELEC CONNECTOR,Female, 3 Pole

NOX Terminator, X-826F1

1шт.

10

84058194

PLUG

NOX Terminator, X-826F1

1шт.

10

84068583

PLUG,12 - 16 Ga, White

NOX Terminator, X-826F1

1шт.

10

225365C1

SOCKET

NOX Terminator, X-826F1

2шт.

11

84058092

CONTACT HOUSING,120 Ohm Resistor

NOX Terminator, X-826M1, 120 Ohm Terminating Resistor

1шт.

11

87695625

WIRE CONNECTOR,Locking, Green

NOX Terminator, X-826M1, 120 Ohm Terminating Resistor

1шт.

12

87709793

WIRE CONNECTOR,Female, 2 Cavities

Downstream Exhaust Temp Sensor, X-828F1

1шт.

12

12309290

CABLE TERMINAL

Downstream Exhaust Temp Sensor, X-828F1

2шт.

12

87705976

SEAL

Downstream Exhaust Temp Sensor, X-828F1

2шт.

13

84190317

WIRE CONNECTOR,Female, 5 Cavities

Dosing Module, X-825F1

1шт.

13

87709655

BLANK-OFF PLUG

Dosing Module, X-825F1

1шт.

13

84190318

TERMINAL CONNECTOR

Dosing Module, X-825F1

4шт.

14

87709793

WIRE CONNECTOR,Female, 2 Cavities

Upstream Exhaust Temp Sensor, X-827F1

1шт.

14

12309290

CABLE TERMINAL

Upstream Exhaust Temp Sensor, X-827F1

2шт.

14

87705976

SEAL

Upstream Exhaust Temp Sensor, X-827F1

2шт.

15

87709793

WIRE CONNECTOR,Female, 2 Cavities

Urea Dosing Injecter, X-804F1

1шт.

15

12309290

CABLE TERMINAL

Urea Dosing Injecter, X-804F1

2шт.

15

87705976

SEAL

Urea Dosing Injecter, X-804F1

2шт.

16

84192117

ELEC CONNECTOR

Urea Heating Valve, X-829F1

1шт.

16

84190318

TERMINAL CONNECTOR

Urea Heating Valve, X-829F1

2шт.

17

84260359

TERMINAL CONNECTOR,Tin, 10.00 - 16.00mm

Power Distribution Box, PD4

1шт.
